45 Degree Flammability Tester is used to determine the flammability of fabrics under controlled conditions (fabric burning test) and to properly classify products according to their combustion properties, preventing the use of any hazardous textiles and garments to reduce any life-threatening risks. This 45 degree Flammability Test Chamber complies with standards like 16 CFR Part 1610, ASTM D1230, ASTM F2100.
Description
Application
45 Degree Flammability Tester, is to determine the fabric flammability (fabric burning test) under controlled conditions. This model 45 degree flammability test chamber is also suitable to evaluate the flammability of medical textiles such as medical face masks, surgical gowns, protective clothing, and drapes.

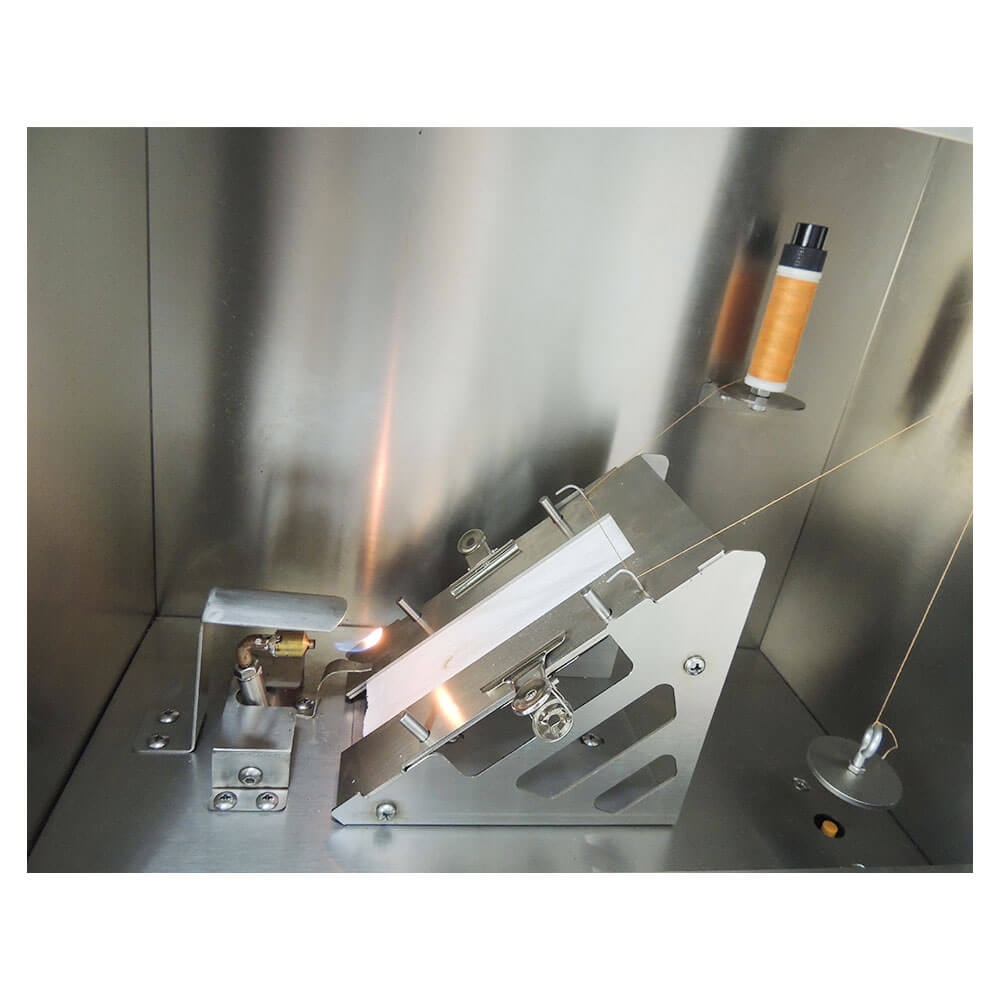

An automatic igniter is equipped to ensure the 45 degree fabric flammability tester safe and easy to operate. Besides, stainless steel test cabinet with a glass observation panel provides automatic timing of flame spread in 0.1-second increments from the ignition. What’s more, a brushing device is included.
In addition, TESTEX offers a full range of flammability testing equipments, including horizontal, vertical, UL94 flammability testers, etc.
Specifications
| Time display and accuracy | 0 ~ 999.9 s, 0.1 s |
| Ignition time | (1 ± 0.05) s |
| Dimension of holder | outside 170 * 101 mm, inside 152 * 38 mm |
| Distance from nozzle to specimen | 8mm |
| Flame height | 16 mm, adjustable |
| Sample dimension | 150 * 50 mm |
| Power | 220/110 V, 50/60 Hz, 3A |
| Weight | 21 Kg |
| Dimensions | 550 * 330 * 550 mm (L x W x H) |
Accessories
| Standard Accessories | Optional Accessories |
| Brushing device | Weight |
| Sample holder 5 sets | Sample holder |
| Flame measuring tape: 16mm | Glass desiccator (inner DA 400mm) and color-changing silica gel desiccant (500g/bottle) |
| Sampling plate | #50 Mercerized cotton thread |
| Weight: 30g | TU320 Oven |
| Calibration plate |
Standards
| 16 CFR Part 1610 | ASTM D1230 | GB/T14644 |
Features of 45 Degree Flammability Tester
Safety setting: equipped with heat-resistant observation window, so it is easy to observe the internal test status.
Long service life: the stainless steel case, highly resistant to corrosion.
Meeting various needs: different sample holders are available for replacement to meet the requirements of different standards.
Easy to use: automatic flame application according to the set time, automatic flame extinguishing when the flame application time is reached.
Intelligent and efficient operation: touch screen control, automatic recording of burning time and burning rate, with timer accuracy of 0.1s.
Distinction among different flammability tests
Why Choose TESTEX 45 Degree Flammability Tester TF310
Strictly meet standards
All data for TF310 meet the standard parameters.
Consistency with international third-party laboratories
The test data are comparable to the test results obtained by well-known international third-party laboratories.
High repeatability
With the same set of samples and the same machine, after multiple tests, the results will also remain consistent.
Longer service life
TESTEX makes prototypes and then subjects them to rigorous reliability testing in a variety of environments to ensure achieve the expected service life.
User-friendly transparent warranty policy
Textile testing machines, 14 months free warranty (12 months normal warranty time + 2 months shipping time). Besides, all spare parts, have 3 months free warranty.
We provide full life-cycle support for 45 Degree Flammability Tester TF310. So feel free to contact our service team with any questions you may have
Welcome to TESTEX – a professional textile testing instrument supplier – 45 Degree Flammability Tester TF310 is on sale, contact us to get a detailed price quote.
