Flexible Supply Systems for POX, EOX, and TOX Applications
The innovative flame sensor technology ensures fastest soot-free boat combustion available on the market. Optimum analysis results, independant of sample quantity and sample matrix are easily reached by any operator.
Flexible Supply Systems for POX, EOX, and TOX Applications
The innovative flame sensor technology ensures fastest soot-free boat combustion available on the market. Optimum analysis results, independant of sample quantity and sample matrix are easily reached by any operator.
Flexible Supply Systems for POX, EOX, and TOX Applications
The innovative flame sensor technology ensures fastest soot-free boat combustion available on the market. Optimum analysis results, independant of sample quantity and sample matrix are easily reached by any operator.
The innovative flame sensor technology ensures fastest soot-free boat combustion available on the market. Optimum analysis results, independant of sample quantity and sample matrix are easily reached by any operator.
Optimal sample introduction for best results

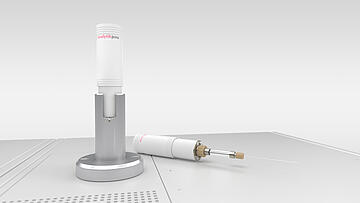

Autoinjector AI
Intelligent constant rate syringe drive for the safe, semi-automatic injection of liquid samples in the vertical operation mode. Thanks to one-step filling it is possible to reach dosing precision of an autosampler, independant of the operator. The autoinjector is equipped with a 100 µl syringe to enable best results, even for analysis in the trace range. The integrated sensors automatically check for proper filling of the syringe, thus eliminates main sources of operation mistakes. The autoinjector is the ideal solution for small sample numbers resp. in case EOX analysis is seldom done.
- Automatic recognition of syringe and correct filling – elimination of user mistakes
- Software controlled, constat injection rates for controlled, complete combustion
- Easy software-guided operation
- Resource saving – no additional power supply, extremely light and small design

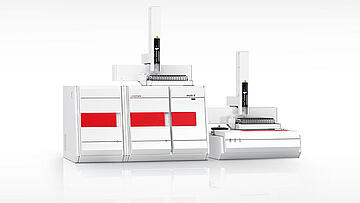

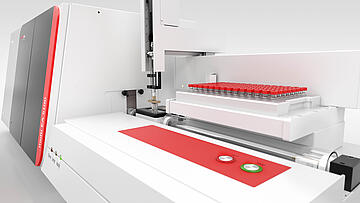

ABD – Automatic Boat Drive
The ABD enables AOX acc. column and batch methode as well as EOX and TOX analysis in the horizontal operation mode. Therefor the samples are introduced either manually or automatically, by aid of the autoX112 autosampler, into quartz sample boats. The ABD transfers the loaded quartz sample boats fully automated into the combustion furnace. The process can be adapted to the specific needs of samples resp. user preferences by flexible programming of up to 3 waiting positions and adaptation of transfer speed, if required. The optional available flame sensor enables a safe and optimized combustion process of any organic matrix, independant if solid or liquid. The ABD enables automated supply of AOX columns and enriched charcoal together with polycarbonate membrane filters (batch method), solid samples up to 110 mg, up to 100 μL EOX extracts or other organic liquids. The flame sensor is required in case of analysis of pure organic as well as vigorously reacting sample matrices (e.g. EOX extracts, polymer waste, used oil etc.).
- Cooled sample port – enables analysis of EOX extracts and other light volatile liquids
- High-performance Peltier cooling for sample boats – minimum idletime in liquids applications
- Automatic port opening and pressure sensors – high operation safety, maximum operation comfort in solids & AOX applications
- Optional flame sensor technology – Intelligent fully automatic adaptation of the combustion process to the specific needs of any matrix component – remarkably reduced downtime and maintenance effort, quantitative digestion even for huge quantities, very reactive samples or unknown matrices
- Safe and easy operation – very suited for shift work and analysis of unknown samples
- Free choice of ABD operation mode allows time and matrix optimized analysis with streamlined throughput
- Minimum maintenance – AOX column and ash is easily removed together with the sample boat manually resp. fully automatically if autoX112 is used.
POX Module
The POX module is an optional accessory for multi X 2500 systems. It enables the determination of POX – purgeable organic halogen compounds – in wastewater and sludge samples. The samples are purged out automatically, a water bath is used to support this process.
Optimal sample introduction for best results
Autoinjector AI
Intelligent constant rate syringe drive for the safe, semi-automatic injection of liquid samples in the vertical operation mode. Thanks to one-step filling it is possible to reach dosing precision of an autosampler, independant of the operator. The autoinjector is equipped with a 100 µl syringe to enable best results, even for analysis in the trace range. The integrated sensors automatically check for proper filling of the syringe, thus eliminates main sources of operation mistakes. The autoinjector is the ideal solution for small sample numbers resp. in case EOX analysis is seldom done.
- Automatic recognition of syringe and correct filling – elimination of user mistakes
- Software controlled, constat injection rates for controlled, complete combustion
- Easy software-guided operation
- Resource saving – no additional power supply, extremely light and small design
ABD – Automatic Boat Drive
The ABD enables AOX acc. column and batch methode as well as EOX and TOX analysis in the horizontal operation mode. Therefor the samples are introduced either manually or automatically, by aid of the autoX112 autosampler, into quartz sample boats. The ABD transfers the loaded quartz sample boats fully automated into the combustion furnace. The process can be adapted to the specific needs of samples resp. user preferences by flexible programming of up to 3 waiting positions and adaptation of transfer speed, if required. The optional available flame sensor enables a safe and optimized combustion process of any organic matrix, independant if solid or liquid. The ABD enables automated supply of AOX columns and enriched charcoal together with polycarbonate membrane filters (batch method), solid samples up to 110 mg, up to 100 μL EOX extracts or other organic liquids. The flame sensor is required in case of analysis of pure organic as well as vigorously reacting sample matrices (e.g. EOX extracts, polymer waste, used oil etc.).
- Cooled sample port – enables analysis of EOX extracts and other light volatile liquids
- High-performance Peltier cooling for sample boats – minimum idletime in liquids applications
- Automatic port opening and pressure sensors – high operation safety, maximum operation comfort in solids & AOX applications
- Optional flame sensor technology – Intelligent fully automatic adaptation of the combustion process to the specific needs of any matrix component – remarkably reduced downtime and maintenance effort, quantitative digestion even for huge quantities, very reactive samples or unknown matrices
- Safe and easy operation – very suited for shift work and analysis of unknown samples
- Free choice of ABD operation mode allows time and matrix optimized analysis with streamlined throughput
- Minimum maintenance – AOX column and ash is easily removed together with the sample boat manually resp. fully automatically if autoX112 is used.
POX Module
The POX module is an optional accessory for multi X 2500 systems. It enables the determination of POX – purgeable organic halogen compounds – in wastewater and sludge samples. The samples are purged out automatically, a water bath is used to support this process.
Optimal sample introduction for best results
Autoinjector AI
Intelligent constant rate syringe drive for the safe, semi-automatic injection of liquid samples in the vertical operation mode. Thanks to one-step filling it is possible to reach dosing precision of an autosampler, independant of the operator. The autoinjector is equipped with a 100 µl syringe to enable best results, even for analysis in the trace range. The integrated sensors automatically check for proper filling of the syringe, thus eliminates main sources of operation mistakes. The autoinjector is the ideal solution for small sample numbers resp. in case EOX analysis is seldom done.
- Automatic recognition of syringe and correct filling – elimination of user mistakes
- Software controlled, constat injection rates for controlled, complete combustion
- Easy software-guided operation
- Resource saving – no additional power supply, extremely light and small design
ABD – Automatic Boat Drive
The ABD enables AOX acc. column and batch methode as well as EOX and TOX analysis in the horizontal operation mode. Therefor the samples are introduced either manually or automatically, by aid of the autoX112 autosampler, into quartz sample boats. The ABD transfers the loaded quartz sample boats fully automated into the combustion furnace. The process can be adapted to the specific needs of samples resp. user preferences by flexible programming of up to 3 waiting positions and adaptation of transfer speed, if required. The optional available flame sensor enables a safe and optimized combustion process of any organic matrix, independant if solid or liquid. The ABD enables automated supply of AOX columns and enriched charcoal together with polycarbonate membrane filters (batch method), solid samples up to 110 mg, up to 100 μL EOX extracts or other organic liquids. The flame sensor is required in case of analysis of pure organic as well as vigorously reacting sample matrices (e.g. EOX extracts, polymer waste, used oil etc.).
- Cooled sample port – enables analysis of EOX extracts and other light volatile liquids
- High-performance Peltier cooling for sample boats – minimum idletime in liquids applications
- Automatic port opening and pressure sensors – high operation safety, maximum operation comfort in solids & AOX applications
- Optional flame sensor technology – Intelligent fully automatic adaptation of the combustion process to the specific needs of any matrix component – remarkably reduced downtime and maintenance effort, quantitative digestion even for huge quantities, very reactive samples or unknown matrices
- Safe and easy operation – very suited for shift work and analysis of unknown samples
- Free choice of ABD operation mode allows time and matrix optimized analysis with streamlined throughput
- Minimum maintenance – AOX column and ash is easily removed together with the sample boat manually resp. fully automatically if autoX112 is used.
POX Module
The POX module is an optional accessory for multi X 2500 systems. It enables the determination of POX – purgeable organic halogen compounds – in wastewater and sludge samples. The samples are purged out automatically, a water bath is used to support this process.
Optimal sample introduction for best results
Autoinjector AI
Intelligent constant rate syringe drive for the safe, semi-automatic injection of liquid samples in the vertical operation mode. Thanks to one-step filling it is possible to reach dosing precision of an autosampler, independant of the operator. The autoinjector is equipped with a 100 µl syringe to enable best results, even for analysis in the trace range. The integrated sensors automatically check for proper filling of the syringe, thus eliminates main sources of operation mistakes. The autoinjector is the ideal solution for small sample numbers resp. in case EOX analysis is seldom done.
ABD – Automatic Boat Drive
The ABD enables AOX acc. column and batch methode as well as EOX and TOX analysis in the horizontal operation mode. Therefor the samples are introduced either manually or automatically, by aid of the autoX112 autosampler, into quartz sample boats. The ABD transfers the loaded quartz sample boats fully automated into the combustion furnace. The process can be adapted to the specific needs of samples resp. user preferences by flexible programming of up to 3 waiting positions and adaptation of transfer speed, if required. The optional available flame sensor enables a safe and optimized combustion process of any organic matrix, independant if solid or liquid. The ABD enables automated supply of AOX columns and enriched charcoal together with polycarbonate membrane filters (batch method), solid samples up to 110 mg, up to 100 μL EOX extracts or other organic liquids. The flame sensor is required in case of analysis of pure organic as well as vigorously reacting sample matrices (e.g. EOX extracts, polymer waste, used oil etc.).
POX Module
The POX module is an optional accessory for multi X 2500 systems. It enables the determination of POX – purgeable organic halogen compounds – in wastewater and sludge samples. The samples are purged out automatically, a water bath is used to support this process.
Autoinjector – with syringe
Semi-automatic injector for small series of liquid samples
Order number: 450-126.422
Autoinjector – with syringe
Semi-automatic injector for small series of liquid samples
Order number: 450-126.422
Automatic Boat Drive – ABD without flame sensor technology
Multi-matrix sample supply system for analysis of EOX and AOX samples acc. column and batch method and inert solids and liquids
Order number: 450-126.416
Automatic Boat Drive – ABD without flame sensor technology
Multi-matrix sample supply system for analysis of EOX and AOX samples acc. column and batch method and inert solids and liquids
Order number: 450-126.416
MBD – manual boat drive
Combine various sample supply systems to extend the application range for the multi X 2500 analyzer for applications like POX, EOX or TOX
Order number: 450-126.423
MBD – manual boat drive
Combine various sample supply systems to extend the application range for the multi X 2500 analyzer for applications like POX, EOX or TOX
Order number: 450-126.423
POX kit
Accessory for the determination of POX contents in vertical operation mode
Order number: 450-889.620
POX kit
Accessory for the determination of POX contents in vertical operation mode
Order number: 450-889.620
Pushing tool AOX column method
Tool for manual direct dosing of charcoal for AOX determination acc. column method
Order number: 450-889.611
Pushing tool AOX column method
Tool for manual direct dosing of charcoal for AOX determination acc. column method
Order number: 450-889.611
Technical Data
|
Dimension (width x depth x height) |
|
|---|---|
|
Autoinjector – with syringe |
80 mm x 80 mm x 190 mm |
|
Automatic Boat Drive – ABD without flame sensor technology |
520 mm x 500 mm x 210 mm |
|
MBD – manual boat drive |
500 mm x 80 mm x 80 mm |
Standards
- APHA SM 5320 B
- ASTM D4744
- DIN 38409-22
- DIN 38414-17
- DIN 38414-18
- DIN EN 16166
- DIN EN ISO 9562
- EPA 1650C
- EPA 450.1
- EPA 9020B
- EPA 9023
- NEN 6402
- OENORM 6614
Order Information
|
Order number |
Description |
|---|---|
| 450-126.422 | Autoinjector – with syringe |
| 450-126.416 | Automatic Boat Drive – ABD without flame sensor technology |
| 450-126.423 | MBD – manual boat drive |
| 450-889.620 | POX kit |
| 450-889.611 | Pushing tool for manual operation |
Dimension (width x depth x height)
Autoinjector – with syringe
450-126.422
Automatic Boat Drive – ABD without flame sensor technology
450-126.416
MBD – manual boat drive
450-126.423
Standards
- APHA SM 5320 B
- ASTM D4744
- DIN 38409-22
- DIN 38414-17
- DIN 38414-18
- DIN EN 16166
- DIN EN ISO 9562
- EPA 1650C
- EPA 450.1
- EPA 9020B
- EPA 9023
- NEN 6402
- OENORM 6614
