Color Matching Cabinet, used for color matching or assessment of all industries and applications where there is a need to maintain color consistency and quality. Equipped with a light source like D65, TL84, CWF, UV, F/A, Colour Matching Cabinet is accordance with ASTM D1729, BS 950 PART1, BS 950 PART1, etc. We are advanced in manufacturing Colour Matching Cabinets at reasonable prices.
Description
Application
As you can see, the Color Light Box / Color Matching Cabinet is widely used in textile testing laboratories, to check the color difference after other textile tests like color fastness. When the test finishes, you can get a grade evaluation based on the specified standards. And many industries spare no effort to maintain the color matching consistency and quality. It includes a variety of industries, such as Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, Knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Ink, and Textiles. Moreover, it is very important to use a standard light source to check the color differences on night duty. As a result, there is a great potential market for testing the color difference.
And this Textile Light Box can get its job done perfectly. Besides, Colour Matching Cabinet complies with ASTM D1729, BS 950 PART1,etc. Not only the D65 light source, TL84, but CWF, UV, and F/A light sources are also available in this color light box for the metamerism effect.
Features of Colour Matching Cabinet
Simulates Multiple Light Sources: The color matching cabinet is equipped to simulate various light sources, including D65, TL84, CWF, UV, F, and A. These color matching cabinet light sources can switch automatically and support metamerism detection, making it ideal for industries like textiles and dyeing to help ensure accurate color matching and minimize color deviations in products.
Advanced Timing Function: This color light box tracks the usage time of each light source separately, displaying both the individual and total usage times to assist with timely maintenance and bulb replacement.

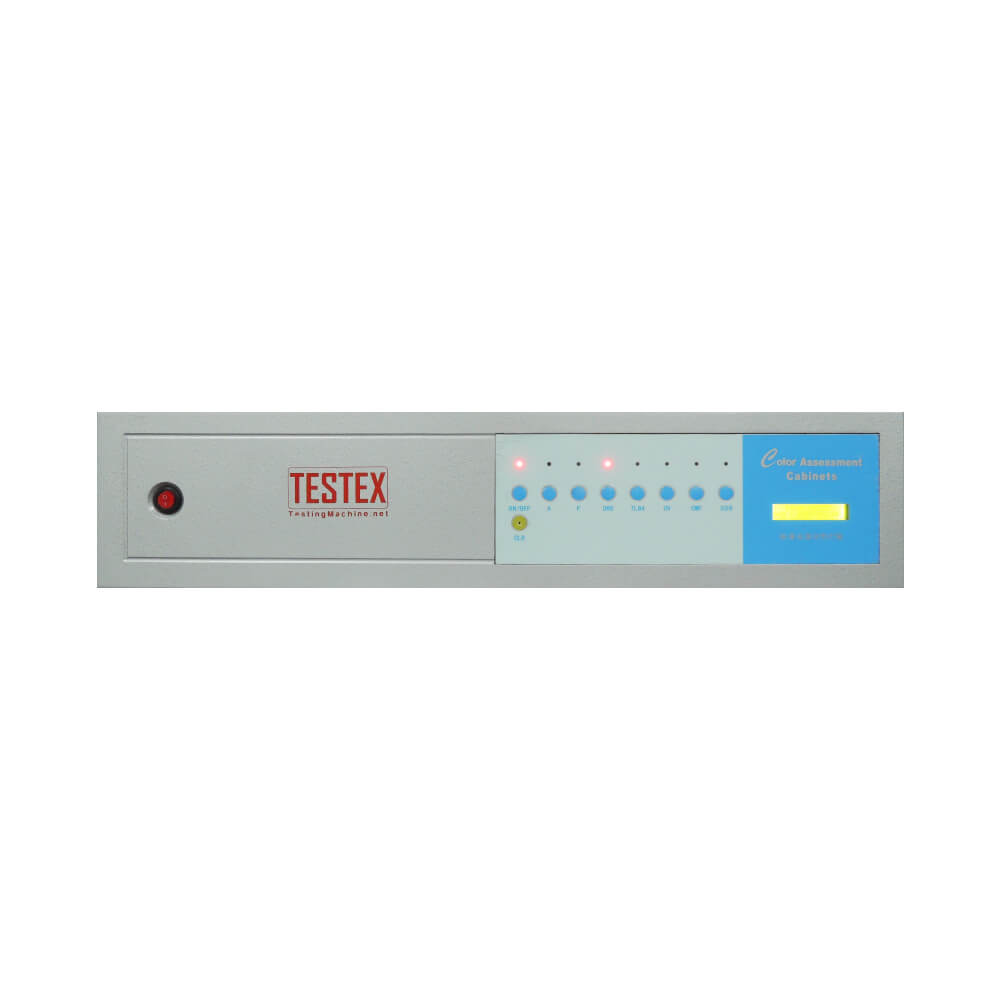

Microcomputer Control: Microcomputer control enables precise, rapid switching between light sources, allowing accurate assessment of color differences under varied lighting.
Instant Use with No Preheating: The light booth for color matching requires no warm-up time, ensuring stable, flicker-free lighting for quick and reliable color evaluations.
More Efficient and Durable: Low power consumption with high lighting efficiency and no heat output, and no need for cooling, making light box color matching more efficient and durable.
User-Friendly Design: Built with quality components in a compact design, the cabinet is easy to use, long-lasting, and cost-effective. For a favorable colour matching cabinet price, please don’t hesitate to contact us now.
Optional order
Viewing Board
Standard light sources（D65, TL84, CWF, F, A, UV, U30）
The extended version of TU300 (1200mm)
Specifications & Models
| Item/Model | Light Sources | Dimension(mm) | Weight |
| TU300C | D65, TL84, CWF, F/A,UV, U30 | 710 x540 x 625 | 30 kg |
| TU300D | D65, TL84, CWF, F, A, UV, U30 | 710 x 540 x 625 | 30 kg |
| TU300A | D65, TL84, F/A, UV | 710 x 420 x 570 | 25kg |
| TU300B | D65, TL84, CWF,F/A,UV | 710 x 420 x 570 | 25kg |
Power
| 220/110 V | 50/60 Hz |
Standards
| ASTM D1729 | BS 950 PART1 | M&S C1 | M&S C2 |
Welcome to TESTEX, a professional textile testing instrument supplier. The Color Matching Cabinet TU300C/D is on sale at a reasonable price. You are welcome to contact us to get a detailed price quote.
