Save your valuable lab space – Small footprint despite high capacity microtiter plate storage

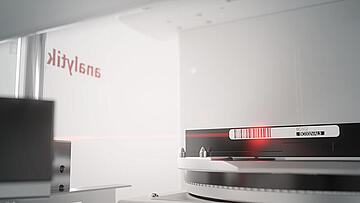

Ensure high process stability and efficiency – Precise printing
Operate reliable and reproducible − Harmonic device and software technology
Reach maximum flexibility −Increasing throughput without compromise
Compact, robust, versatile – the CyBio QuadPrint high-throughput label printer makes your labeling processes safe and reliable, with maximum walk-away time.
Compact, high speed and precise label print and apply solution
The novel barcode labeler CyBio QuadPrint sets higher standards in high speed microplate labeling. It features a very small footprint, flexible labeling on all four sides of the microplate as well as an automatic label height adjustment.
- Direct transfer from stack to label position
- User friendly software with CyBio PrintStudio (GUI)
- Based on the new ergonomic stacker system CyBio QuadStack
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure-Liquid-Handling-PlatformAutomation Solutions | en | PDF, 799 KB |
| Brochure LabAutomation Product Overview (EN) | en | PDF, 537 KB |
| Brochure CyBio QuadPrint (EN) | en | PDF, 1 MB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
| Broschüre Produktführer Life Science (DE) | de | PDF, 2 MB |
Compact, high speed and precise label print and apply solution
The novel barcode labeler CyBio QuadPrint sets higher standards in high speed microplate labeling. It features a very small footprint, flexible labeling on all four sides of the microplate as well as an automatic label height adjustment.
- Direct transfer from stack to label position
- User friendly software with CyBio PrintStudio (GUI)
- Based on the new ergonomic stacker system CyBio QuadStack
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure-Liquid-Handling-PlatformAutomation Solutions | en | PDF, 799 KB |
| Brochure LabAutomation Product Overview (EN) | en | PDF, 537 KB |
| Brochure CyBio QuadPrint (EN) | en | PDF, 1 MB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
| Broschüre Produktführer Life Science (DE) | de | PDF, 2 MB |
Compact, high speed and precise label print and apply solution
The novel barcode labeler CyBio QuadPrint sets higher standards in high speed microplate labeling. It features a very small footprint, flexible labeling on all four sides of the microplate as well as an automatic label height adjustment.
- Direct transfer from stack to label position
- User friendly software with CyBio PrintStudio (GUI)
- Based on the new ergonomic stacker system CyBio QuadStack
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure-Liquid-Handling-PlatformAutomation Solutions | en | PDF, 799 KB |
| Brochure LabAutomation Product Overview (EN) | en | PDF, 537 KB |
| Brochure CyBio QuadPrint (EN) | en | PDF, 1 MB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
| Broschüre Produktführer Life Science (DE) | de | PDF, 2 MB |
The novel barcode labeler CyBio QuadPrint sets higher standards in high speed microplate labeling. It features a very small footprint, flexible labeling on all four sides of the microplate as well as an automatic label height adjustment.

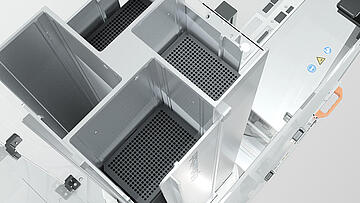

Printer and Stacker in One Device
Printer and plate storage form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint. Thanks to the re-duced required dimensions of the device, the CyBio QuadPrint can be operated on the standard laboratory bench or integrated into automation systems.
The precise labelling of the microtiter plates by the CyBio QuadPrint allows the required process stability in pharmaceutical and life science laboratories, especially in downstream applications. The accurate positioning of a easily readable label ensures the successful reading of the barcode and thus a trouble-free execution of the workflow. Special diligence is required when applying long, thin labels, such as those used for labeling microtiter plates.
Automating the labeling process leads to a prevention of human errors and an increased efficiency in laboratory processes.The reliability of the system is achieved through robust de-vice technology combined with error-tolerant device control. The combination of CyBio Composer with the improved CyBio PrintStudio enables reliable operation of the CyBio QuadPrint. This includes the ergonomic design of label lay-outs as well as the import of label lists and printing of MTP labels. Thanks to a low-maintenance, high-performance label printer and suitable labels, the system easily can with-stand the rough conditions in production environments.
The CyBio QuadPrint has a very high stacker capacity (up to 280 MTPs) and allows the processing of different microplate formats in ANSI SLAS format. The combination of excellent labeling speed, a comprehensive database with predefined microplate parameters and a wide range of label contents (barcode, text, 1D and 2D) makes the CyBio QuadPrint a flexible partner in automated high-throughput labeling.
Printer and Stacker in One Device
Printer and plate storage form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint. Thanks to the re-duced required dimensions of the device, the CyBio QuadPrint can be operated on the standard laboratory bench or integrated into automation systems.
The precise labelling of the microtiter plates by the CyBio QuadPrint allows the required process stability in pharmaceutical and life science laboratories, especially in downstream applications. The accurate positioning of a easily readable label ensures the successful reading of the barcode and thus a trouble-free execution of the workflow. Special diligence is required when applying long, thin labels, such as those used for labeling microtiter plates.
Automating the labeling process leads to a prevention of human errors and an increased efficiency in laboratory processes.The reliability of the system is achieved through robust de-vice technology combined with error-tolerant device control. The combination of CyBio Composer with the improved CyBio PrintStudio enables reliable operation of the CyBio QuadPrint. This includes the ergonomic design of label lay-outs as well as the import of label lists and printing of MTP labels. Thanks to a low-maintenance, high-performance label printer and suitable labels, the system easily can with-stand the rough conditions in production environments.
The CyBio QuadPrint has a very high stacker capacity (up to 280 MTPs) and allows the processing of different microplate formats in ANSI SLAS format. The combination of excellent labeling speed, a comprehensive database with predefined microplate parameters and a wide range of label contents (barcode, text, 1D and 2D) makes the CyBio QuadPrint a flexible partner in automated high-throughput labeling.
Printer and Stacker in One Device
Printer and plate storage form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint. Thanks to the re-duced required dimensions of the device, the CyBio QuadPrint can be operated on the standard laboratory bench or integrated into automation systems.
The precise labelling of the microtiter plates by the CyBio QuadPrint allows the required process stability in pharmaceutical and life science laboratories, especially in downstream applications. The accurate positioning of a easily readable label ensures the successful reading of the barcode and thus a trouble-free execution of the workflow. Special diligence is required when applying long, thin labels, such as those used for labeling microtiter plates.
Automating the labeling process leads to a prevention of human errors and an increased efficiency in laboratory processes.The reliability of the system is achieved through robust de-vice technology combined with error-tolerant device control. The combination of CyBio Composer with the improved CyBio PrintStudio enables reliable operation of the CyBio QuadPrint. This includes the ergonomic design of label lay-outs as well as the import of label lists and printing of MTP labels. Thanks to a low-maintenance, high-performance label printer and suitable labels, the system easily can with-stand the rough conditions in production environments.
The CyBio QuadPrint has a very high stacker capacity (up to 280 MTPs) and allows the processing of different microplate formats in ANSI SLAS format. The combination of excellent labeling speed, a comprehensive database with predefined microplate parameters and a wide range of label contents (barcode, text, 1D and 2D) makes the CyBio QuadPrint a flexible partner in automated high-throughput labeling.
Printer and Stacker in One Device
Printer and plate storage form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint. Thanks to the re-duced required dimensions of the device, the CyBio QuadPrint can be operated on the standard laboratory bench or integrated into automation systems.
The precise labelling of the microtiter plates by the CyBio QuadPrint allows the required process stability in pharmaceutical and life science laboratories, especially in downstream applications. The accurate positioning of a easily readable label ensures the successful reading of the barcode and thus a trouble-free execution of the workflow. Special diligence is required when applying long, thin labels, such as those used for labeling microtiter plates.
Automating the labeling process leads to a prevention of human errors and an increased efficiency in laboratory processes.The reliability of the system is achieved through robust de-vice technology combined with error-tolerant device control. The combination of CyBio Composer with the improved CyBio PrintStudio enables reliable operation of the CyBio QuadPrint. This includes the ergonomic design of label lay-outs as well as the import of label lists and printing of MTP labels. Thanks to a low-maintenance, high-performance label printer and suitable labels, the system easily can with-stand the rough conditions in production environments.
The CyBio QuadPrint has a very high stacker capacity (up to 280 MTPs) and allows the processing of different microplate formats in ANSI SLAS format. The combination of excellent labeling speed, a comprehensive database with predefined microplate parameters and a wide range of label contents (barcode, text, 1D and 2D) makes the CyBio QuadPrint a flexible partner in automated high-throughput labeling.
CyBio QuadPrint HQ-M
Printer and plate storage (standard stacker length 555 mm) form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint.
Order number: OL5004-26-027
CyBio QuadPrint HQ-M
Printer and plate storage (standard stacker length 555 mm) form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint.
Order number: OL5004-26-027
CyBio QuadPrint HQ
Printer that enables microtiter plate (MTP) labeling on a comparatively small footprint for integration in automation environment.
Order number: OL5004-26-025
CyBio QuadPrint HQ
Printer that enables microtiter plate (MTP) labeling on a comparatively small footprint for integration in automation environment.
Order number: OL5004-26-025
CyBio QuadPrint HQ-L
Printer and plate storage (extended stacker length 755 mm) form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint.
Order number: OL5004-26-026
CyBio QuadPrint HQ-L
Printer and plate storage (extended stacker length 755 mm) form a unique unit that enables fully automated microtiter plate (MTP) loading, labeling and storage on a comparatively small footprint.
Order number: OL5004-26-026
Technical Data
|
Label Size |
Barcode Types |
Label Characteristics |
System Capacities |
Labware Compatibility |
Dimension (width x depth x height) |
|
|---|---|---|---|---|---|---|
|
CyBio QuadPrint HQ-M |
66.0 mm x 7.0/5.5 mm | Code39, Code128, 2of5interleaved, QR Code, Aztec Code, Data Matrix, Maxi Code, PDF-147 | Resistant to chemcials, wipes/scratch, moisture | up to 280 plates | ANSI SLAS format, shallow well, deep well, high base, low profile microplates, tip boxes | 932.5 mm x 441.8 mm x 1095.7 mm |
|
CyBio QuadPrint HQ |
66.0 mm x 7.0/5.5 mm | Code39, Code128, 2of5interleaved, QR Code, Aztec Code, Data Matrix, Maxi Code, PDF-147 | Resistant to chemcials, wipes/scratch, moisture | no plate storage | ANSI SLAS format, shallow well, deep well, high base, low profile microplates, tip boxes | 732.5 mm x 424.2 mm x 726 mm |
|
CyBio QuadPrint HQ-L |
66.0 mm x 7.0/5.5 mm | Code39, Code128, 2of5interleaved, QR Code, Aztec Code, Data Matrix, Maxi Code, PDF-147 | Resistant to chemcials, wipes/scratch, moisture | up to 280 plates | ANSI SLAS format, shallow well, deep well, high base, low profile microplates, tip boxes | 932.5 mm x 441.8 mm x 1295.7 mm |
Order Information
|
Order number |
Description |
|---|---|
| OL5004-26-027 | CyBio QuadPrint HQ-M, automated high throughput barcode/text printing, labeling and stacking of microlpates |
| OL5004-26-025 | CyBio QuadPrint HQ, automated high throughput barcode/text printing and labeling |
| OL5004-26-026 | CyBio QuadPrint HQ-L, automated high throughput barcode/text printing, labeling and stacking of microlpates |
Label Size
Barcode Types
Label Characteristics
System Capacities
Labware Compatibility
Dimension (width x depth x height)
CyBio QuadPrint HQ-M
OL5004-26-027
CyBio QuadPrint HQ
OL5004-26-025
CyBio QuadPrint HQ-L
OL5004-26-026
Order number
Description
The combination of CyBio Composer with the improved CyBio PrintStudio enables reliable control of the CyBio QuadPrint. This includes the ergonomic design of label layouts as well as the import of label lists and printing of MTP labels.
System requirements:
Order number: OL9515-40-001
The CyBio Scheduler software allows for the parallel and time-optimized control of several laboratory instruments to execute a number of diverse workflows. The Software provides flexibility and precision to run your automation system. No matter how complex your assays are, with CyBio Scheduler you will achieve reproducible and uniform conditions and assay results for each individual plate.
