Autosampler for Elemental Analysis

• Enhanced lab efficiency, less idle time between analysis
• Enabling unattended and 24/7 operation
• Enhanced results quality due to maximum precision in sample dosing, elimination of operation mistakes
• Easy to use – software controlles operation, implemented self cleaning (for liquids sampler)

Download Product Information

Intelligent innovation for fast and precise analysis

MMS

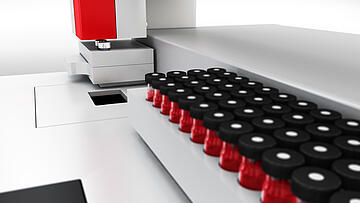

Multi-Matrix Sampler, suited for the automated introduction of up to 112 liquid or 35 solid samples in vertical and horizontal operation mode.

• Cost effcitive 4-in-1 automation solution suitale for in vertical and horizontal operation mode
• Flexible system configuration, accessory kits for dosing of solids/AOX (35 pos.), liquids/EOX (112 pos.), TOC (60 pos.), liquids with heating/cooling (112 pos.)
• Liquids up to 500 μL (direct injection by μL-syringe), solids up to 110 mg resp. AOX samples acc. batch and column method (boat dosing by gripper)
• Easy operation software -controlled, automatic recognition of present accessory kit
• High sample throughput
• Unlimited flexibility, upgradable at any later time by suited extension-kits
• Easy operation – direct injection of highly viscose liquids without dilution by heating option for tray and syringe
• Maximum safety and best results – cooling option for tray and syringe ensure safe and complete dosing of very light volatile liquids
• Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal

MMS-T

Temperature-controllable liquids sampler, suited for the automated introduction of up to 112 liquid in vertical and horizontal operation mode.

• Smart multi-purpose automation solution for liquids
• Unlimited flexibility and ease of use due to temperature controllable sample tray and dosing syringes
• Faster processing of challenging liquids – direct injection of highly viscose samples without dilution by heating option
• Maximum safety and best results – safe and complete dosing of very light volatile liquids by cooling option
• Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal
• Flexible system extension for automated dosing od solids/ AOX samples (35 pos.) in horizontal opertaion mode
• Easy operation software-controlled, automatic recognition of present accessory kit

LS 1

Liquids sampler, suited for the automated introduction of up to 18 samples with compEAct analysis sytems. Ideal solution for comfortable processig of small sample batches.

• Precise dosing of up to 100 µL
• Injection speed and volumes adaptable in 1 µL-steps by operator
• Accelerated throughput speed
• Easy operation – automatic rinsing cycles with sample and pure solvent, sealed waste vessel

LS 2

Liquids sampler, suited for the automated introduction of up to 120 samples with compEAct analysis sytems. Ideal solution for high throughput applications in industrial QC routine and contract analysis.

• Precise dosing of up to 100 µL
• Injection speed and volumes adaptable in 1 µL-steps by operator
• Accelerated throughput speed
• Easy operation – automatic rinsing cycles with sample and pure solvent, sealed waste vessel

LS-T

Temperature-controllable liquids sampler, suited for the automated introduction of up to 112 liquids in with compEAct analyzers.

• Smart multi-purpose automation solution for liquids
• Unlimited flexibility and ease of use due to temperature controllable sample tray and dosing syringes
• Faster processing of challenging liquids – direct injection of highly viscose samples without dilution by heating option
• Maximum safety and best results – safe and complete dosing of very light volatile liquids by cooling option
• Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal
• Easy operation software-controlled

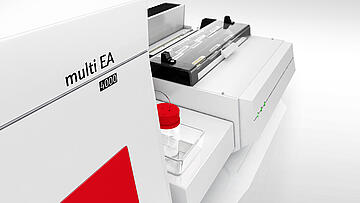

FPG 48

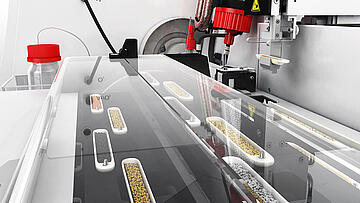

Solids sampler for up to 48 samples in ceramic (C/S and TOC analysis) resp. quartz sample boats (Cl analysis) with multi EA 4000 systems.

• Suitable for automation of C/S and Cl analysis and the determination of environmelntal-important sum parameters – TOC/TC/TIC, EC/OC/RC/BOC
• Sample masses up to 3 grams
• Optional function for automated disposal of consumed ceramic sample boats
• Flame sensor option for Cl analsis of organic materials – automatic optimization of combustion process to prevent soot formation and low quality results
• Easy operation software-controlled
