  • Extension for wider application spectra at any time
  • Unique flexibility due to variable dosing volumes
  • Convincingly easy and cost-effective calibration strategies
  • Remarkable sensitivity in ultra-trace applications
  • High precision by direct dosing of original samples

    • Versatile Gas Sampling Systems

    • SilcoNert coating for relevant system components inclusive to prevent sample loss
    • Perma-Purge technology prevents memory effects and sample loss
    • Variable dosing volumes enable apadtation to the sample concentration and cost-effective calibration over a wide concentration range
    • Standard compliant operation – prefabricat library methods
    • Maximum safety – Self Check System, integrated system flow check
    • Easy automated operation via software
    • Integrated particle filter, purge tool, system rinse – effortless operation and maintenance

    Download Product Information

    Brochures

    Title Language Info
    Brochure multi EA 5100 Elemental Analysis (EN) en PDF, 406 KB
    Broschüre compEAct (DE) de PDF, 364 KB
    Brochure compEAct (EN) en PDF, 359 KB
    Produktkatalog Chemische Analyse (DE) de PDF, 909 KB
    Product Guide Chemical Analysis (EN) en PDF, 886 KB
    Flyer Accessories for multi EA 5100 (EN) en PDF, 304 KB
    Flyer Zubehöre multi EA 5100 (DE) de PDF, 323 KB
    Broschüre multi EA 5100 Elementanalytik (DE) de PDF, 401 KB

    Versatile Gas Sampling Systems

    • SilcoNert coating for relevant system components inclusive to prevent sample loss
    • Perma-Purge technology prevents memory effects and sample loss
    • Variable dosing volumes enable apadtation to the sample concentration and cost-effective calibration over a wide concentration range
    • Standard compliant operation – prefabricat library methods
    • Maximum safety – Self Check System, integrated system flow check
    • Easy automated operation via software
    • Integrated particle filter, purge tool, system rinse – effortless operation and maintenance

    Download Product Information

    Brochures

    Title Language Info
    Brochure multi EA 5100 Elemental Analysis (EN) en PDF, 406 KB
    Broschüre compEAct (DE) de PDF, 364 KB
    Brochure compEAct (EN) en PDF, 359 KB
    Produktkatalog Chemische Analyse (DE) de PDF, 909 KB
    Product Guide Chemical Analysis (EN) en PDF, 886 KB
    Flyer Accessories for multi EA 5100 (EN) en PDF, 304 KB
    Flyer Zubehöre multi EA 5100 (DE) de PDF, 323 KB
    Broschüre multi EA 5100 Elementanalytik (DE) de PDF, 401 KB

    Versatile Gas Sampling Systems

    • SilcoNert coating for relevant system components inclusive to prevent sample loss
    • Perma-Purge technology prevents memory effects and sample loss
    • Variable dosing volumes enable apadtation to the sample concentration and cost-effective calibration over a wide concentration range
    • Standard compliant operation – prefabricat library methods
    • Maximum safety – Self Check System, integrated system flow check
    • Easy automated operation via software
    • Integrated particle filter, purge tool, system rinse – effortless operation and maintenance

    Download Product Information

    Brochures

    Title Language Info
    Brochure multi EA 5100 Elemental Analysis (EN) en PDF, 406 KB
    Broschüre compEAct (DE) de PDF, 364 KB
    Brochure compEAct (EN) en PDF, 359 KB
    Produktkatalog Chemische Analyse (DE) de PDF, 909 KB
    Product Guide Chemical Analysis (EN) en PDF, 886 KB
    Flyer Accessories for multi EA 5100 (EN) en PDF, 304 KB
    Flyer Zubehöre multi EA 5100 (DE) de PDF, 323 KB
    Broschüre multi EA 5100 Elementanalytik (DE) de PDF, 401 KB

    Download Product Information

    The right solution for any sample matrix

    GSS/LPG Combi Module

    2-in-1 combination of LPG and pressurized gas sampling system. Suitable for liquefied pressurized gases (LPG, LNG, CNG) with pressures up to 18 bar (LPG branch) and pressurized gases up to 200 bar (GSS branch)

    • Free selectable sample volumes up to 50 μL (LPG), up to 20 mL (gas)
    • Two separate sample branches for LPG and GSS to prevent cross contamination
    • High performance technology – automatic flow control, integrated particle filters
    • Cooled sampling valve for LPG dosing – prevents too early evaporation, deflagration and scattering analysis results
    • Loop technology for direct dosing of pressurized gases
    • Multiple dosing to cover wide concentration range
    • Heated evaporation chamber preventing samle loss

    GSS Module

    Suitable for non-pressurized gases (ambient pressure) and with GSS adapter box for pressurized gases (up to 200 bar)

    • Free selectable sample volumes up to 100 mL, variable in 1 mL steps
    • Maintenance-free, automatic system rinse (prevention of memory effects)
    • SilcoNertâ„¢ coating – prevention of adsorption loss
    • Sample supply via gas bags (Tedlarâ„¢) or gas bludders
    • Optional GSS adapter box for direct connection of pressurized gas cylinders

    LPG 2.0 Module

    For direct dosing of liquefied pressurized gases (LPG) with pressures up to 35 bar.

    • Free selectable sample volumes up to 50 μL in 1 µL steps
    • High performance technology: automatic flow control, integrated particle filter
    • Cooled dosing valve – prevents too early evaporation, deflagration and scattering analysis results
    • Multiple dosing to cover wide concentration range and easy calibration
    • Heated evaporation chamber preventing samle loss

    The right solution for any sample matrix

    GSS/LPG Combi Module

    2-in-1 combination of LPG and pressurized gas sampling system. Suitable for liquefied pressurized gases (LPG, LNG, CNG) with pressures up to 18 bar (LPG branch) and pressurized gases up to 200 bar (GSS branch)

    • Free selectable sample volumes up to 50 μL (LPG), up to 20 mL (gas)
    • Two separate sample branches for LPG and GSS to prevent cross contamination
    • High performance technology – automatic flow control, integrated particle filters
    • Cooled sampling valve for LPG dosing – prevents too early evaporation, deflagration and scattering analysis results
    • Loop technology for direct dosing of pressurized gases
    • Multiple dosing to cover wide concentration range
    • Heated evaporation chamber preventing samle loss

    GSS Module

    Suitable for non-pressurized gases (ambient pressure) and with GSS adapter box for pressurized gases (up to 200 bar)

    • Free selectable sample volumes up to 100 mL, variable in 1 mL steps
    • Maintenance-free, automatic system rinse (prevention of memory effects)
    • SilcoNertâ„¢ coating – prevention of adsorption loss
    • Sample supply via gas bags (Tedlarâ„¢) or gas bludders
    • Optional GSS adapter box for direct connection of pressurized gas cylinders

    LPG 2.0 Module

    For direct dosing of liquefied pressurized gases (LPG) with pressures up to 35 bar.

    • Free selectable sample volumes up to 50 μL in 1 µL steps
    • High performance technology: automatic flow control, integrated particle filter
    • Cooled dosing valve – prevents too early evaporation, deflagration and scattering analysis results
    • Multiple dosing to cover wide concentration range and easy calibration
    • Heated evaporation chamber preventing samle loss

    The right solution for any sample matrix

    GSS/LPG Combi Module

    2-in-1 combination of LPG and pressurized gas sampling system. Suitable for liquefied pressurized gases (LPG, LNG, CNG) with pressures up to 18 bar (LPG branch) and pressurized gases up to 200 bar (GSS branch)

    • Free selectable sample volumes up to 50 μL (LPG), up to 20 mL (gas)
    • Two separate sample branches for LPG and GSS to prevent cross contamination
    • High performance technology – automatic flow control, integrated particle filters
    • Cooled sampling valve for LPG dosing – prevents too early evaporation, deflagration and scattering analysis results
    • Loop technology for direct dosing of pressurized gases
    • Multiple dosing to cover wide concentration range
    • Heated evaporation chamber preventing samle loss

    GSS Module

    Suitable for non-pressurized gases (ambient pressure) and with GSS adapter box for pressurized gases (up to 200 bar)

    • Free selectable sample volumes up to 100 mL, variable in 1 mL steps
    • Maintenance-free, automatic system rinse (prevention of memory effects)
    • SilcoNertâ„¢ coating – prevention of adsorption loss
    • Sample supply via gas bags (Tedlarâ„¢) or gas bludders
    • Optional GSS adapter box for direct connection of pressurized gas cylinders

    LPG 2.0 Module

    For direct dosing of liquefied pressurized gases (LPG) with pressures up to 35 bar.

    • Free selectable sample volumes up to 50 μL in 1 µL steps
    • High performance technology: automatic flow control, integrated particle filter
    • Cooled dosing valve – prevents too early evaporation, deflagration and scattering analysis results
    • Multiple dosing to cover wide concentration range and easy calibration
    • Heated evaporation chamber preventing samle loss

    The right solution for any sample matrix

    GSS/LPG Combi Module

    2-in-1 combination of LPG and pressurized gas sampling system. Suitable for liquefied pressurized gases (LPG, LNG, CNG) with pressures up to 18 bar (LPG branch) and pressurized gases up to 200 bar (GSS branch)

    GSS Module

    Suitable for non-pressurized gases (ambient pressure) and with GSS adapter box for pressurized gases (up to 200 bar)

    LPG 2.0 Module

    For direct dosing of liquefied pressurized gases (LPG) with pressures up to 35 bar.

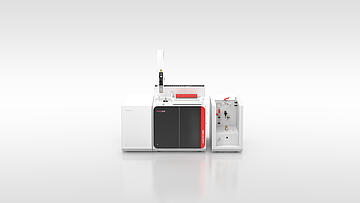

    Gas sampling system – GSS for multi EA 5000 / 5100

    The impressing allrounder in gas analysis for multi EA 5100

    Order number: 450-126.420

    Gas sampling system – GSS for multi EA 5000 / 5100

    The impressing allrounder in gas analysis for multi EA 5100

    Order number: 450-126.420

    Gas sampling system for compEAct / multi EA 5010

    The allrounder for non-pressurized and pressurized gases

    Order number: 450-126.410

    Gas sampling system for compEAct / multi EA 5010

    The allrounder for non-pressurized and pressurized gases

    Order number: 450-126.410

    GSS/LPG combi module for multi EA 5000 / 5100

    2-in-1 combination of LPG and pressurized gas sampling system for multi EA 5100

    Order number: 450-126.418

    GSS/LPG combi module for multi EA 5000 / 5100

    2-in-1 combination of LPG and pressurized gas sampling system for multi EA 5100

    Order number: 450-126.418

    GSS/LPG-combi module for compEAct / multi EA 5010

    2-in-1 combination for LPG and pressurized gas sampling

    Order number: 450-126.419

    GSS/LPG-combi module for compEAct / multi EA 5010

    2-in-1 combination for LPG and pressurized gas sampling

    Order number: 450-126.419

    LPG module 2.0 for compEAct / multi EA 5010

    The safe solution for demanding high-pressure LPG applications

    Order number: 450-900.466

    LPG module 2.0 for compEAct / multi EA 5010

    The safe solution for demanding high-pressure LPG applications

    Order number: 450-900.466

    LPG module 2.0 multi EA 5000 / 5100

    The safe solution for demanding high-pressure LPG applications for multi EA 5100

    Order number: 450-900.465

    LPG module 2.0 multi EA 5000 / 5100

    The safe solution for demanding high-pressure LPG applications for multi EA 5100

    Order number: 450-900.465

    Applications

    Chemical & Materials

    Show applications

    Applications

    • Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

      Open application

    Oil & Gas

    Show applications

    Applications

    • Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

      Open application

    Power & Energy

    Show applications

    Applications

    • Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

      Open application

    Applications

    Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

    Open application

    Applications

    Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

    Open application

    Applications

    Fast and Reliable TS Determination in Liquefied Pressurized Gases (LPG) according to ASTM D6667, ASTM D7551, and DIN EN 17178 (EN)

    Open application

    Technical Data

    Dimension (width x depth x height)

    Gas sampling system – GSS for multi EA 5000 / 5100
    450-126.420

    		 300 mm x 500 mm x 470 mm

    Gas sampling system for compEAct / multi EA 5010
    450-126.410

    		 300 mm x 550 mm x 800 mm

    GSS/LPG combi module for multi EA 5000 / 5100
    450-126.418

    		 300 mm x 550 mm x 800 mm

    GSS/LPG-combi module for compEAct / multi EA 5010
    450-126.419

    		 300 mm x 550 mm x 800 mm

    LPG module 2.0 for compEAct / multi EA 5010
    450-900.466

    		 300 mm x 550 mm x 800 mm

    LPG module 2.0 multi EA 5000 / 5100
    450-900.465

    		 300 mm x 550 mm x 800 mm

    Standards

    • ASTM D3246
    • ASTM D6667
    • ASTM D7551
    • DIN EN 17178
    • UOP 910
    • UOP 988

    Order Information

    Order number

    Description
    450-126.420 Gas sampling system – GSS for multi EA 5000 / 5100
    450-126.410 Gas sampling system for compEAct / multi EA 5010
    450-126.418 GSS/LPG combi module for multi EA 5000 / 5100
    450-126.419 GSS/LPG-combi module for compEAct / multi EA 5010
    450-900.466 LPG module 2.0 for compEAct / multi EA 5010
    450-900.465 LPG module 2.0 multi EA 5000 / 5100

    Dimension (width x depth x height)

    Gas sampling system – GSS for multi EA 5000 / 5100
    450-126.420

    Gas sampling system for compEAct / multi EA 5010
    450-126.410

    GSS/LPG combi module for multi EA 5000 / 5100
    450-126.418

    GSS/LPG-combi module for compEAct / multi EA 5010
    450-126.419

    LPG module 2.0 for compEAct / multi EA 5010
    450-900.466

    LPG module 2.0 multi EA 5000 / 5100
    450-900.465

    Standards

    • ASTM D3246
    • ASTM D6667
    • ASTM D7551
    • DIN EN 17178
    • UOP 910
    • UOP 988

    Order number

    Description

    Sign up here

    Newsletter Stay up to date

    Subscribe now

    Social Media

    Follow us on the social web.

    Cookie settings

    Check and adjust your cookie settings here.

    Edit settings

    Sitemap

    This website uses cookies

    Consent Management

    We respect your right to privacy. You can decide for yourself which types of cookies you want to accept when visiting the website and which not.

    Manufacturer

    Related products

    Scroll to Top
