The fastening tape tester is designed to measure the capability of fastening tape used in many industries, such as shoes, garments, etc. The fastening tape Tester complies with BS EN ISO 22776, SATRA TM 123, etc. TESTEX is a well-known Fastening Tape Tester manufacturer in the industry and currently sells its products to over 60 countries and regions worldwide. If you are interested in it, please contact us for more information about the fastening tape strength test.
Description
Application
The fastening tape tester is widely used to determine the capability of hook & loop used in textile industries, such as shoes, garments, and so on. Besides, the fastening tester enjoys a wide application for its stable running and convenient operation. If you want to test the fastening tape, this instrument will be your good choice without a doubt.
The followings are the steps to carry out the test in order. First, cut the specimen 540mm by 20 or 50mm in dimension from the sample under test into the wheel of the fastening tape tester to be fitted completely. Next, make hooks & loops subject to repeated stripping and peeling a specific number of times. After the test, use a tensile machine (another purchase) to measure its peeling strength (AS) and shear strength (PA).
Specifications
- Upper Roller: Dia. 162+/- 0.5 mm, 80 mm in width
- Lower Roller: Dia. 160+/- 0.5 mm, 80 mm in width
- Roller Speed: 60+/-5 r/min
- Loading: 1±0.1N/mm
- Number of test cycles: 5,000
- Counter: LCD display, 1- 9, 999 times, adjustable
Weight
| 83 kg |
Power
| 220/110 V | 50/60 Hz | 3 A |
Dimensions
| Length: 460 mm | Width: 520 mm | Height: 650 mm |
Standards
| BS EN ISO 22776 | SATRA TM 123 |
Features
Precision and durability: fastening tape tester controlled by a PLC closed-loop controller.
Safety and convenience: a transparent plastic cover allows engineers to see the test process and ensures safety.
Stable and quiet operation: this machine is equipped with rigid construction and advanced AC servomotors.

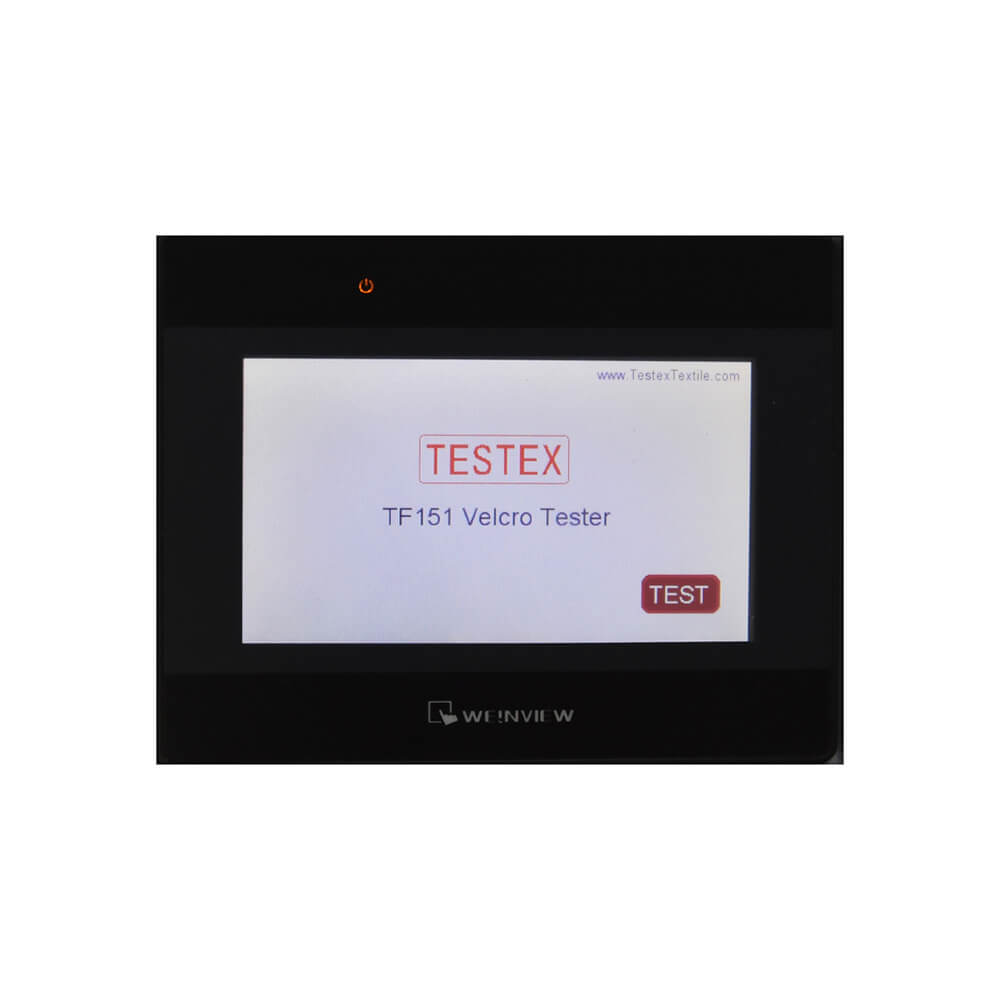

Simple to use and acquire test data: values are displayed in direct digital form, making it easy to read test results.
Longer service life: TESTEX fastening tape tester is made of stainless steel material, anti-corrosion, and anti-rust.
Test principle

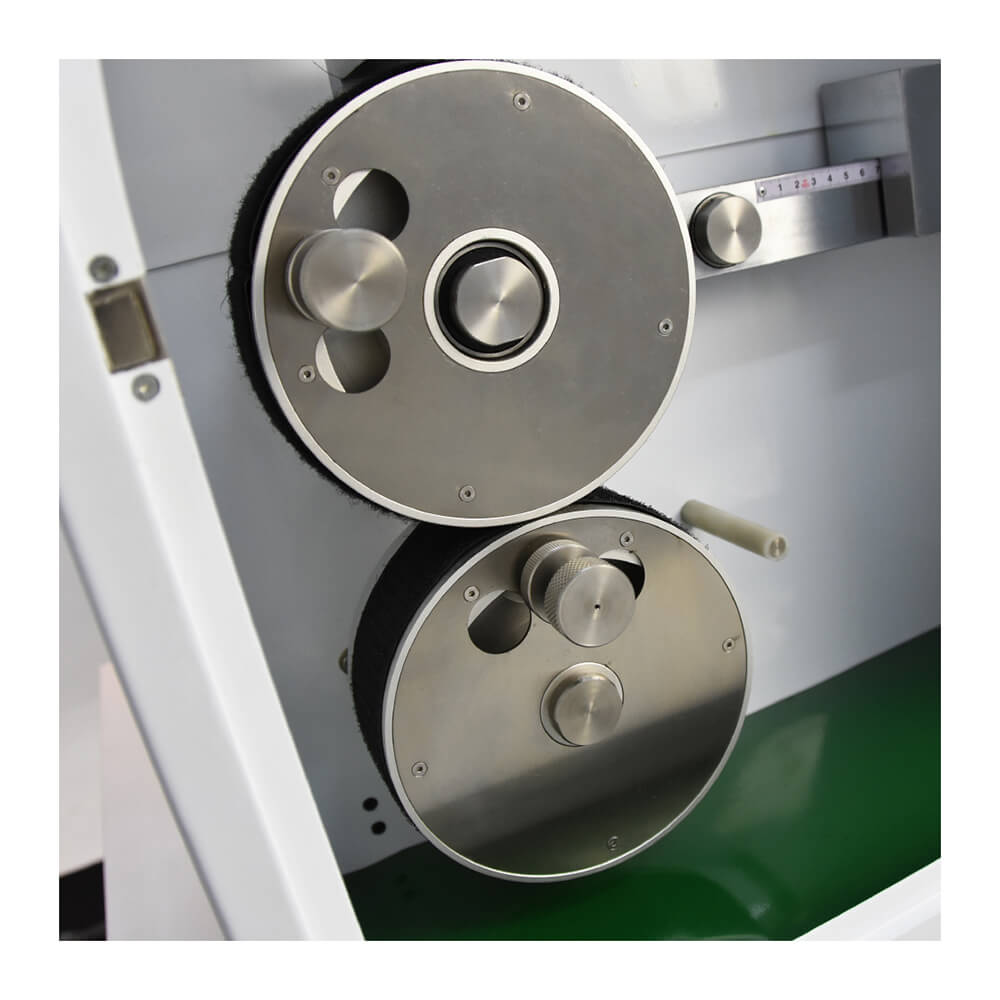

Mount the hook-type and ring-type parts of the specimen on the two rollers of this velcro fatigue tester. Then make them stick together under the specified load. After a certain number of forward and reverse rotations, remove the specimen in the tensile tester when they do not stick together. Finally, you can obtain the adhesive force and adhesive strength of the specimen.
What Should Pay attention to When we use Fastening Tape?
We should try every effort to avoid the fastening tape from soaking in water for a long time. Moreover, we should be careful to prevent dust and stay away from high-temperature objects when using fastening tape. After a long time of use, some dust and plush will adhere to the back adhesive buckle. Therefore, they should be cleaned up in time. If not, this dust and plush can easily damage the nylon hook, thus making the tearing effect worse, and affecting the service life of the fastening tape directly.
