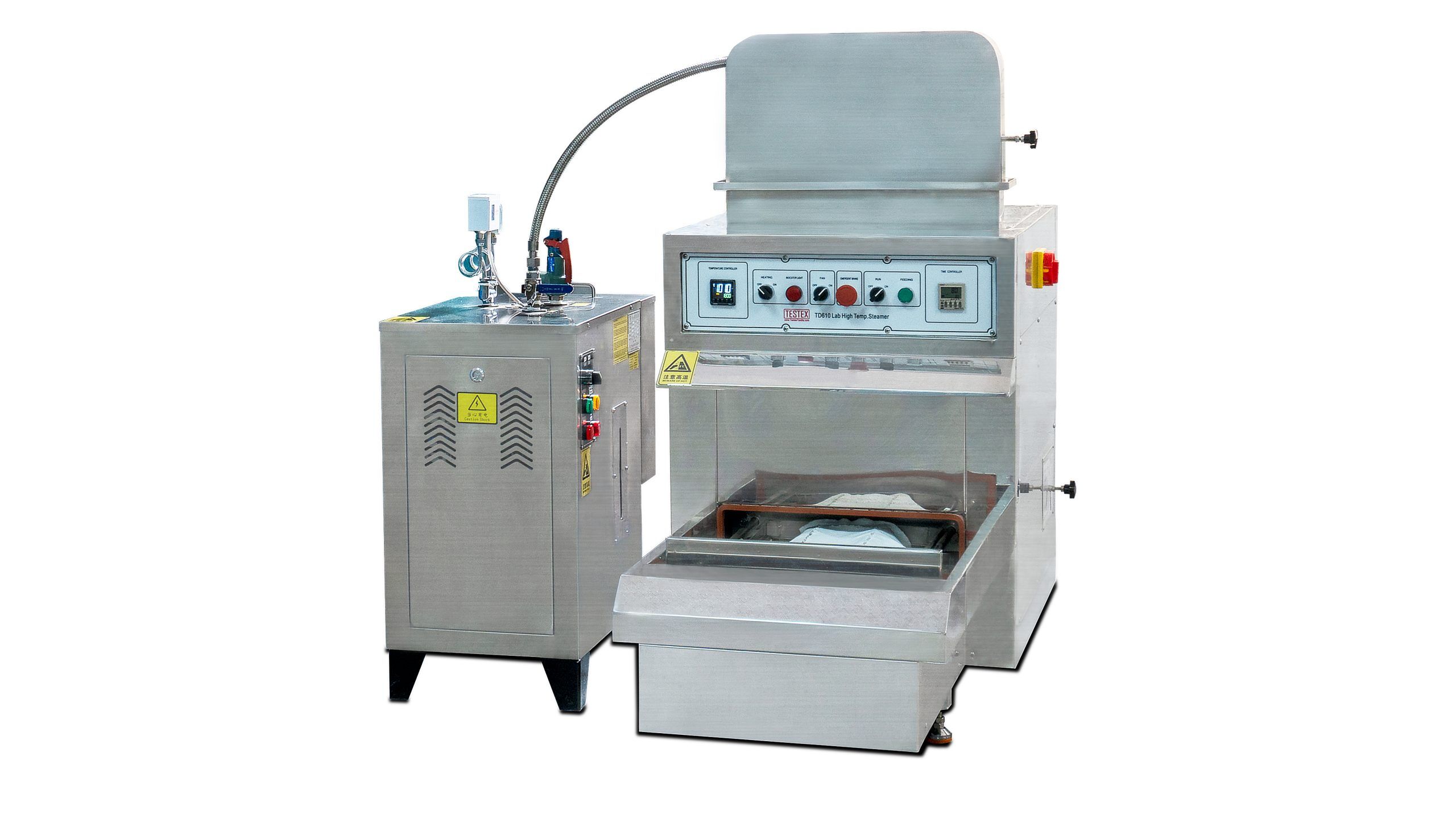

Lab High Temperature Steamer, the same looking as the floor type dryer, but equipped with a steam generator, thus this steamer can be widely used for drying, curing, and steaming, for the use of a wide range of the dyestuff and chemical industry, finishing plants, research institutes, and general textile industry.
Description
Lab High Temperature Steamer, the same looking as the floor type dryer, but equipped with a steam generator, thus this steamer can be widely used for drying, curing, and steaming, for the use of a wide range of the dyestuff and chemical industry, finishing plants, research institutes, and general textile industry.
Specifications
Temperature range：
Electric heating for drying, curing 20 ℃ ~ 220℃
Steaming with saturated steam 102±2℃
High Temperature Steaming at 100 ~ 220 ℃
working time is presentable for 1 ~ 999 s, automatically moving in & out, and alarms
With the special design of a retractable pin frame, the tension of test fabric samples can be adjusted in both warp and weft direction, and the maximum stretch rate is up to 30%
Max sample size 350 x 400mm (effective dimension 300 × 350mm)
Suitable for the discontinuous operation in conjunction with TD122 Lab Padder
Optional Accessories Steamer 55kg
Power
| 380 V | 50 Hz | 7 kW |
Weight
| 140 kg |
Dimensions
| 690 x 1500 x 1090 mm (L x W x H) |
Welcome to TESTEX – a professional textile testing instrument supplier – Lab High Temperature Steamer is on sale, contact us to get a detailed price quote.
