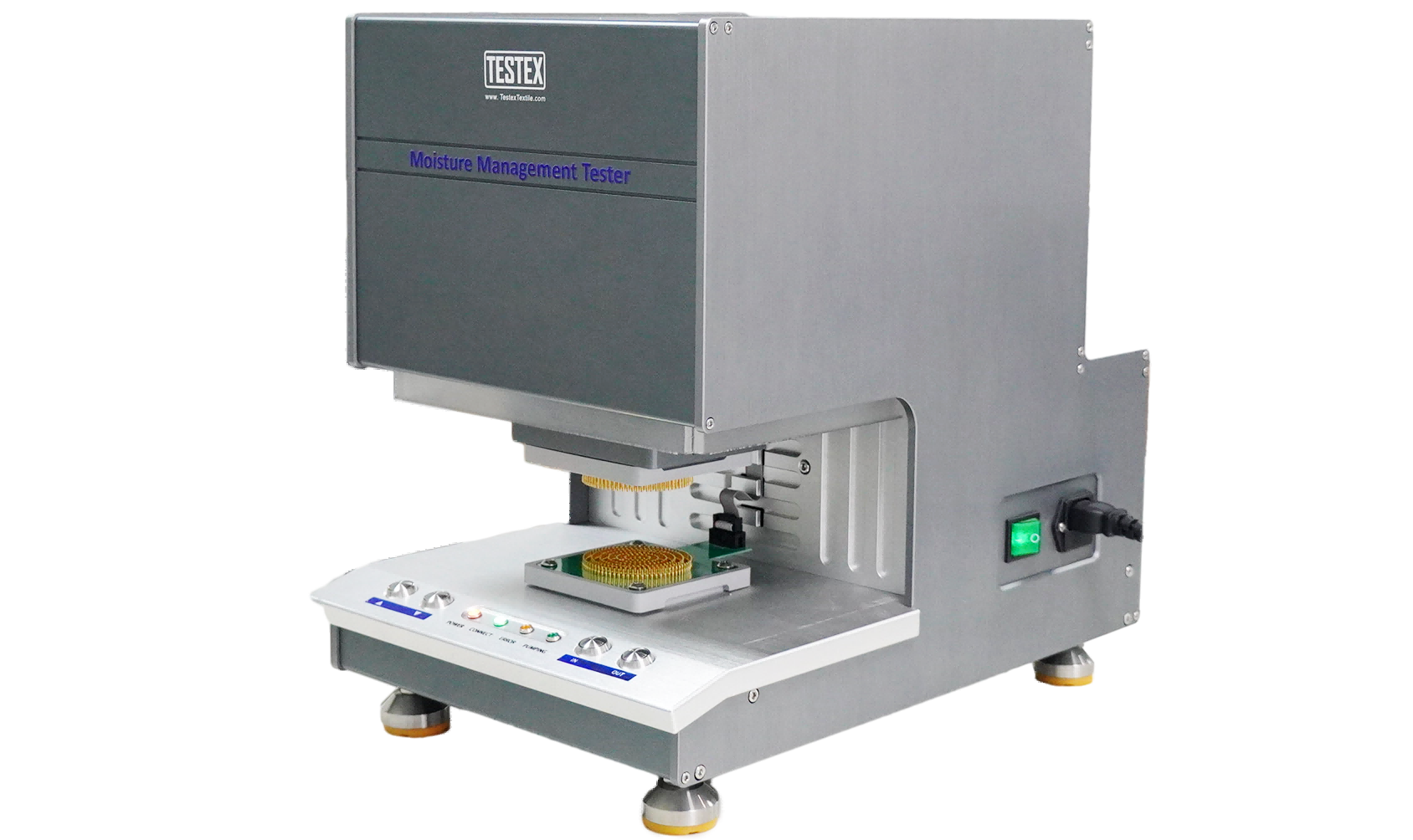

Moisture Management Tester TF128 is used to measure the dynamic liquid transport properties of textiles such as knitted, woven fabrics, and nonwoven textile fabric. Moisture Management Tester TF128 mainly tests the absorption and diffusion performance of fabric to sweat. It is used to conduct testing of moisture management in textiles. The absorption and diffusion of work by fabric directly affect the comfortable performance of wearing clothes. In particular, only the cloth that absorbs water or sweat well is qualified for sportswear. So if you want to do an absorbency test for fabric, Moisture Management Tester TF 128 is ideal choice.
How does Moisture Management Tester TF128 work? It simulates sweat with physiological saline, by measuring the overall dynamic performance of saline in moisture management fabrics such as knitted and woven fabrics, then the wetting time of saline through both sides of the fabric, the absorption speed of saline on both sides of the fabric, the diffusion radius of saline on both sides of the fabric, etc., to comprehensively evaluate the sweat absorption and quick-drying performance of the fabric.
The Moisture Management Tester TF128 meets a wide range of international standards, such as AATCC 195, and GB/T 21655.2, and is currently sold in 42 countries worldwide. We offer our textile customers high-quality Moisture Management Testers to help you quickly identify the most suitable functional textiles. You can get a quote for The Moisture Management Tester TF128 now.
Description
Features of the Moisture Management Tester TF128
Fast and Accurate moisture testing, 2 mins to complete.
Moisture Management Tester TF128 contains a pair of upper and lower multi-loop resistance measurement probes. Simply drop the salt solution on the sample. As the solution passes through the sample, the computer can dynamically record the change in resistance of the upper and lower probes and obtain accurate readings of the wetting time, water absorption rate, soaking radius, and diffusion rate of the fabric through a standard calculation formula.
This Moisture Management Tester is equipped with a precision motor control device.
One key to starting the test, the motor automatically drives the test head to the specified position, with the built-in pressure detection device, the moisture test will stop by reaching a fixed pressure automatically.
The Moisture-Wicking test is reliable.
The matching transparent shield can protect the sample and ensure the stability of the testing process and the accuracy of the moisture management test results.
The drip system is accurate and stable.
Moisture Testing Machine TF128 has a liquid recovery function, to prevent the infusion tube salt water crystals from blocking the pipeline.
Full metal shell, good anti-interference performance.
Easy to use.
Simple buttons, an open case, and a center light on the sensor make it easier for the test men to operate the moisture management machine and place the sample precisely.
Note: A customized PC is needed for this instrument.
More: the moisture management test means Moisture Management Tester test also can do a wicking test, Our Moisture Management Tester is especially for wicking test textiles and complies with fabric wicking test standards. Contact us for more fabric wicked test methods.
The Moisture Management Tester’s key features and test items include:
- Wetting Time Top / Bottom (WTT / WTB) or Wetting Diffusion Rate (Wetting Time): Measures the time it takes for moisture to diffuse from the fabric’s surface to the interior or exterior of the fabric. This reflects the rate at which moisture is absorbed into the fabric.
- Absorption Rate Top / Bottom (TAR / BAR) or Absorption Rate: Measures the rate at which moisture is absorbed by the fabric and evaluates the fabric’s ability to absorb moisture.
- Spreading Speed Top / Bottom (TSS / BSS) or Spreading Radius: Measures the spreading range of moisture on fabric to assess the spreading of moisture on the surface or inside the fabric.
- Accumulative One-Way Transport Capacity (R) or One-way Transport Capability: Evaluates the ability of moisture to transfer from the inner to the outer layers of fabric, often used to determine the effectiveness of fabric perspiration.
- Overall Moisture Management Capacity (OMMC): This is a composite index used to evaluate the overall moisture absorption and moisture removal performance of a fabric.
Specifications
| Analysis Software | Offered |
| Interface | USB 1.1/2.0 |
| Power Supply | 110V~230V 50Hz/60Hz |
| Operation Temp & R. H. | 18°C to 40°C, 20% to 80% (non-condensing) |
| Pump On Time | 20 sec |
| Test Solution | Conductivity – 16 mS± 0.2 mS |
| Weight | 25 Kg |
| Dimensions | 280 x 420 x 400mm (L x W x H) |
Standards（fabric wicking test standard）
| AATCC 195 | GB/T 21655.2 |
Test Principle of Moisture Management Tester TF128
The Moisture Management Tester TF128 includes an upper and lower concentric liquid sensor with multiple probes, the liquid tube in the upper sensor will simulate the fixed concentration of human sweat saline water, drops evenly on the fabric, and the sensor probes test the resistance between different rings to reflect the change in resistance of the liquid in the fabric absorption and diffusion, to get the ability of the fabric to absorb and diffuse sweat.
Why Choose TESTEX Moisture Management Tester TF128
Strictly meet standards: All data for Moisture Management Tester TF128 meet the standard parameters, for example, AATCC 195.
Consistency with international third-party laboratories: The moisture-wicking test data are comparable to the test results obtained by well-known international third-party laboratories.
High reproducibility: Whether is the same set of samples, or different machines of the same model, after multiple tests, the moisture management test results are consistent.
Longer service life: TESTEX makes prototypes and then subjects them to rigorous reliability testing in a variety of environments to ensure the expected service life.
User-friendly transparent warranty policy
Textile testing machines, 14 months free warranty (12 months normal warranty time + 2 months shipping time). Besides, all spare parts, have 3 months free warranty.
We provide full life-cycle support for moisture management tester TF128. So feel free to contact our service team with any questions.
Welcome to TESTEX – a professional textile testing instrument supplier – Moisture Management Tester TF128 is on sale, contact us to get a detailed price quote.
