Description

Application

Rain Tester, widely applied to labs to test the penetration resistance performance of fabrics or composites under different intensities of water impact(by stimulating the rain-dropping gravity impact via different water levels inside the tube, pre-determined according to different standards). Simulating rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Measure the absorbent paper of the sample both before and after the test. The rain is formed by a column of water, which can be adjusted from 600mm to 2400mm.

Test Principle

Prepare a test sample, wrap the sample in a weighed blotting paper, and then spray it with water for 5 minutes under controlled conditions. After finishing the test, one can determine the amount of water penetration of the sample by weighing the absorbent paper again.

Features

• Made of stainless steel and special aluminum the main body can make sure durability of the machine
• The water-level pipe does not need mounting on the wall for easy operation
• The accurate test data is consistent with internationally renowned third-party laboratories

Specifications

• Test Dimensions: 200x200mm
• Sample Nip Width: 152mm
• Sample Nip Space Between: 165mm(GB/T 23321)，155mm（AATCC 35, ISO 22958）
• Sample Nip Dimensions: 178 * 279 mm
• Nozzle Diameter: 0.99±0.013mm
• Nozzle Space Between sample: 305mm

Optional order

AATCC Blotting Paper: 152*152mm

Weight

65 kg

Dimensions

Length: 790 mm

Width: 610 mm

Height: 2800 mm

Standards

AATCC 35

ISO 22958

GB/T 23321

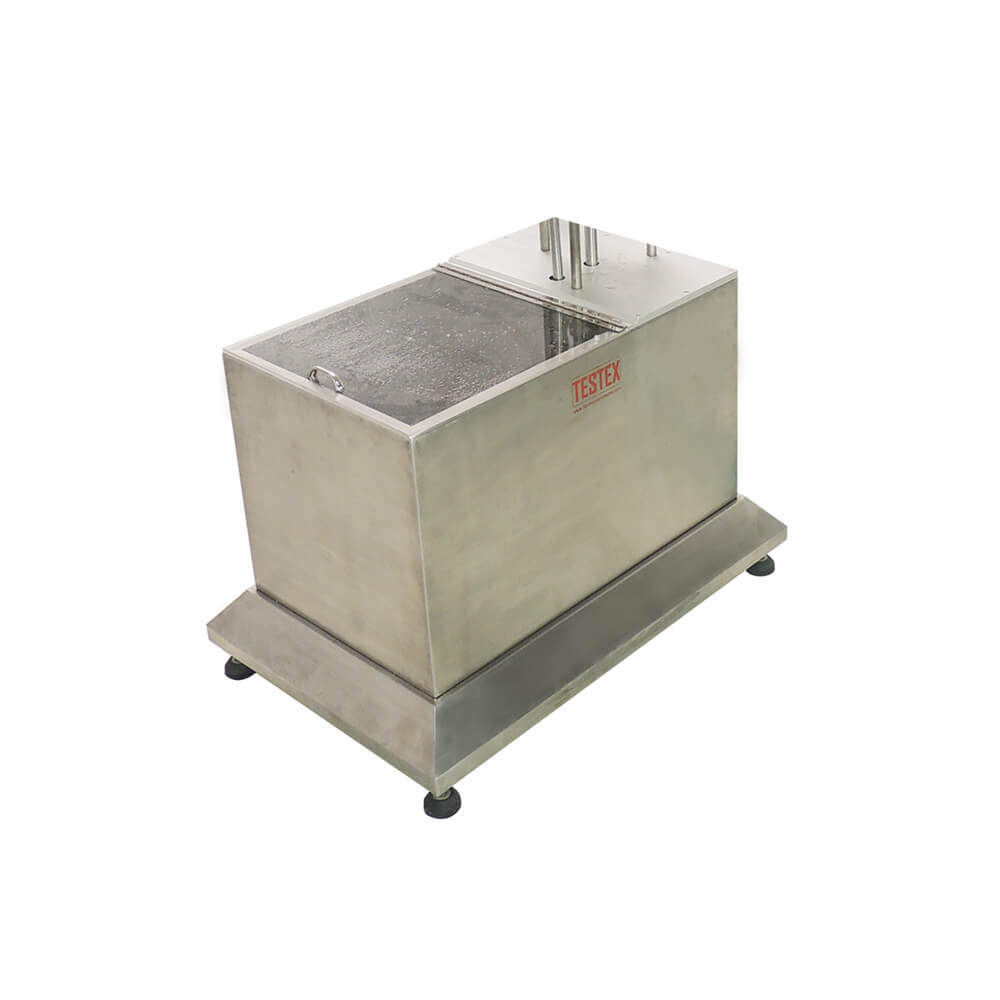

Why choose TESTEX Rainproof Tester TF161

Strictly meet standards:

All data for the rainproof testing machine meet the standard parameters, for example, AATCC 35 and ISO 22958.

Consistency with international third-party laboratories:

The test data are comparable to the test results obtained by well-known international third-party laboratories.

High reproducibility:

Whether is the same set of samples, or different machines of the same model, after multiple tests, the results are consistent.

Longer service life:

TESTEX makes prototypes and then subjects them to rigorous reliability testing in a variety of environments to ensure achieve the expected service life.

User-friendly transparent warranty policy:

Textile testing machines, 14 months free warranty (12 months normal warranty time + 2 months shipping time). Besides, all spare parts, have 3 months free warranty.

We provide full life-cycle support for Rainproof Tester TF161. So feel free to contact our service team with any questions you may have.

Welcome to TESTEX – a professional textile testing instrument supplier – Rainproof Tester TF161 is on sale, contact us to get a detailed price quote.
