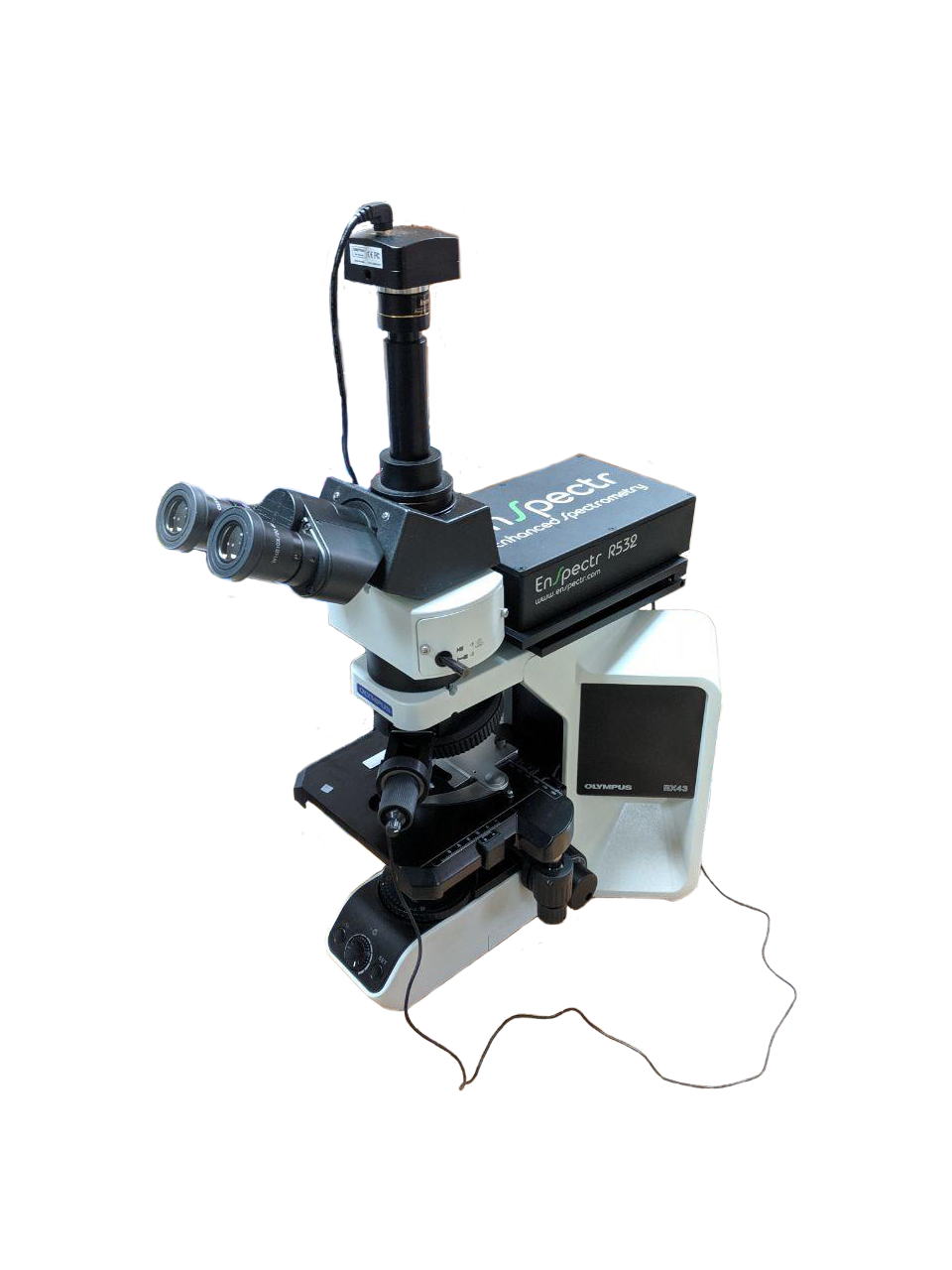

Raman Microscope RamMics M532® integrates the capabities of EnSpectr R532® Raman Analyzer Scientific Edition and Olympus BX-43/BX51 microscope adapted both for transmission and reflection measurements.
Suitable Applications
SERS analysis
Pharmaceutics
Mineralogy and geology
Medicine
Chemical industry
Customs control
Forensics
Gemology
Art and Restoration
Applied materials science
Higher education/Scientific research
Identification of counterfeit products
Features
- High-precision measurements of heterogeneous compounds and small objects
- Reflection and transmission measurement modes
- Sample positioning and focusing with digital camera
- 2D mapping (optional)
- High-precision measurements of heterogeneous compounds and small objects
- Reflection and transmission measurement modes
- Sample positioning and focusing with digital camera
- 2D mapping (optional)
Benefits
- Cost-effective fully functional Raman system
- Compact size and portability
- Qualitative and quantitative analysis of compounds with superior accuracy
- Hi-tech system
- Cost-effective fully functional Raman system
- Compact size and portability
- Qualitative and quantitative analysis of compounds with superior accuracy
- Hi-tech system
Raman Microscope RamMics M532® integrates the capabities of EnSpectr R532® Raman Analyzer Scientific Edition and Olympus BX-43/BX51 microscope adapted both for transmission and reflection measurements.
The wide functionality of RamMics M532® allows distinguishing particles 2-3 µm in size and differentiating them from those with other chemical and physical properties, which opens multiple research prospects within a single Raman system.
Excellent spatial resolution of 1 µm and spectral resolution 4-6 cm-1 provide precise quality of measurements and repeatability. Due to its compact design and portability, RamMics M532®ensures high quality in-situ results with minimum expenses and proves to be a truly indispensable tool for various applications.
Equipped with a motorized sample stage with a step from 0.36 µm (option), RamMics M532®turns into the world’s most cost-effective micro-Raman system for automatic 2D mapping.
Raman Microscope RamMics M532® integrates the capabities of EnSpectr R532® Raman Analyzer Scientific Edition and Olympus BX-43/BX51 microscope adapted both for transmission and reflection measurements.
The wide functionality of RamMics M532® allows distinguishing particles 2-3 µm in size and differentiating them from those with other chemical and physical properties, which opens multiple research prospects within a single Raman system.
Excellent spatial resolution of 1 µm and spectral resolution 4-6 cm-1 provide precise quality of measurements and repeatability. Due to its compact design and portability, RamMics M532®ensures high quality in-situ results with minimum expenses and proves to be a truly indispensable tool for various applications.
Equipped with a motorized sample stage with a step from 0.36 µm (option), RamMics M532®turns into the world’s most cost-effective micro-Raman system for automatic 2D mapping.
