Description

Application of SmartCut Fabric Sample Cutting Machine

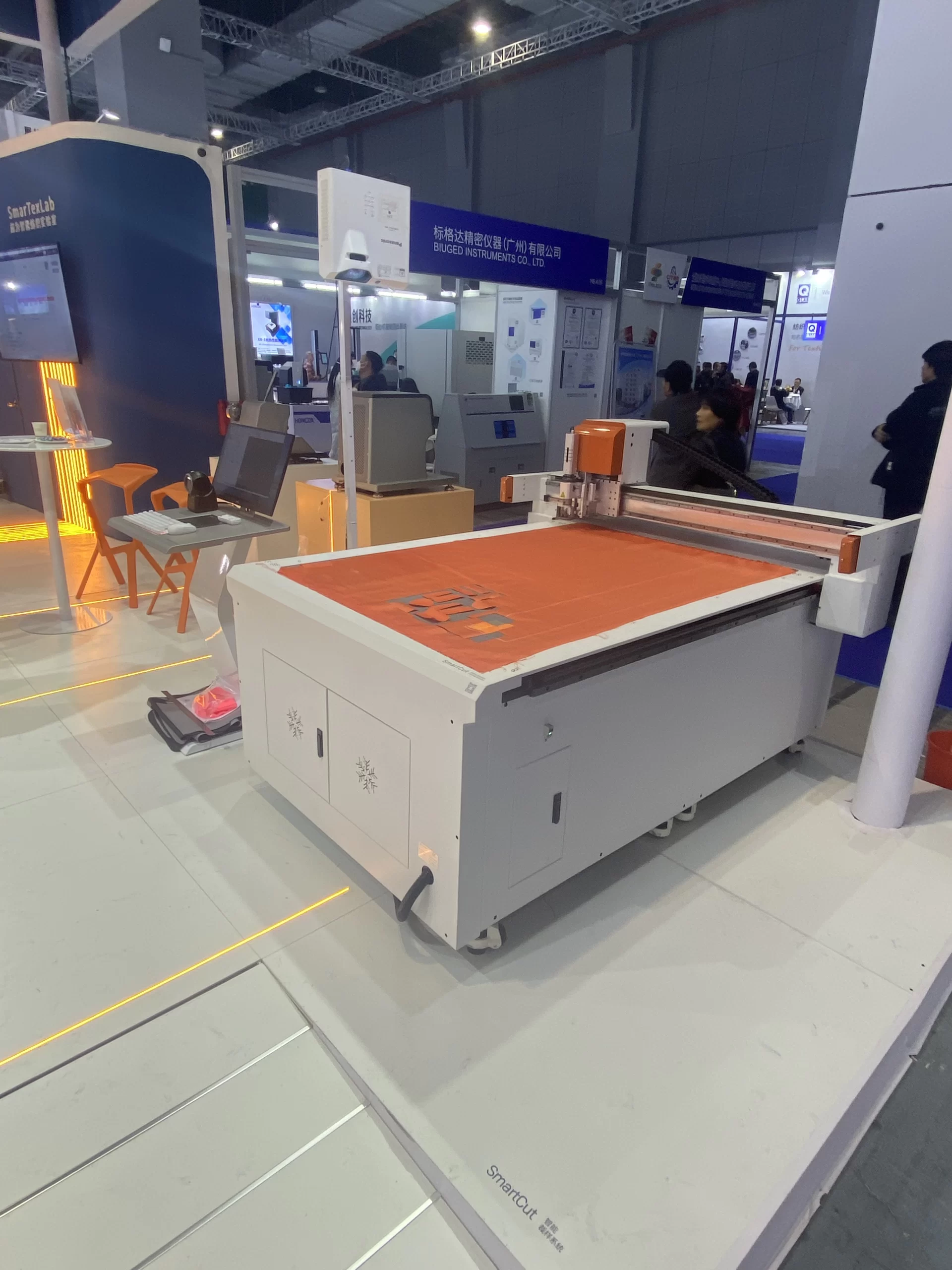

SmartCut Textile Sample Cutting Machine saves 90% of sample cutting time and speeds up the whole test. The cutting is precise and the sample qualification rate is higher. The sample graphic library covers more than 95% of the textile testing items. It meets most sampling requirements, such as abrasion & pilling tests, tearing strength tests, waterproof tests, anti-static tests, tensile strength tests, color fastness tests, etc. Flexible cutting pattern, easier sampling. This Textile Sample Cutting Machine can achieve multi-station cutting (cutting different fabrics at the same time), multi-layer cutting (thickness up to 7mm), shaped cutting (irregular shapes), etc. This Smart Fabric Sample Cutting Machine consists of sample-cutting software, a fabric sample-cutting machine, a computer, and a projector. The working principle: The operator lays out the shapes of cutting samples in the software, then the projector projects the layout onto the working table, and after starting the cutting button, the fabric sample cutting machine can automatically cut out the samples as required.

Strictly cuts the samples according to the standards, ensuring the test is more reliable.

This fabric Fabric Swatch Cutting Machine supports decentralized sampling, trapezoidal sampling, full-width sampling, and 45° sampling, and can cut samples according to the rules such as alignment to the grid and edge. So, the reliability of the test is guaranteed from the sampling.

More precise cutting and higher sample pass rate.

The tungsten steel blade of the SmartCut Fabric Swatch Cutting Machine is sharp and can be rotated 360°, with a sample cutting accuracy of 0.1mm, and a round-trip cutting error rate of less than 0.01mm, i.e. cut grams of specimens accurately.

Saves 5 laborers per year (about $420,000) for large-scale labs.

If you need to cut 100 whole fabric samples per day, the conventional manual cutting requires 3000 minutes, i.e. 6 laborers; while using the SmartCut sample cutting machine, 100 whole samples need only 0.6 laborers, saving 5 laborers per year for the laboratory.

SmartCut Fabric Swatch Cutter can also achieve multi-station cutting (cutting different fabrics at the same time); multi-layer cutting (maximum cutting thickness of 7mm, can cut 1-20 layers); shaped cutting (irregular graphics). It can mark samples.

The Working Process of SmartCut Sample Cutting Machine

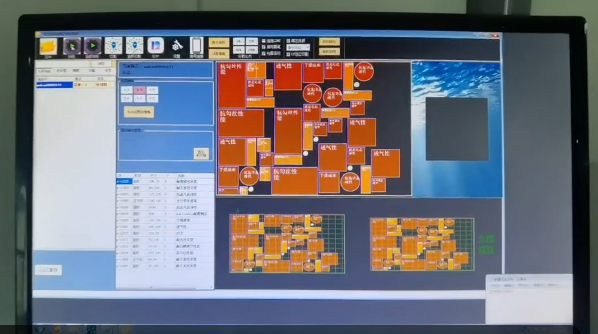

(1) Quick entry: It is equipped with intelligent sample cutting software, which sets up many test standards and the corresponding sample cutting requirements: sample graphics, and dimensions so that you can choose according to your needs.; You can also set it up as a package, then next time you can directly open the package;

(2) one-click layout: Click the [layout] button then the fabric sample cutting machine will work, you can choose the mode of [decentralized layout] or the layout of [cut the fabric as the fabric-saving way]; Layout according to standard requirements to ensure the reliability of sampling;

(3) Flexible adjustment: The layout graphics will be projected onto the fabric, you can drag the graphics manually according to the fabric state or change the size of the layout area, and you can modify the number of samples;

(4) One-click cutting: Click the [cutting] button, and the SmartCut sample cutter starts to cut the fabric, it will walk according to the system’s algorithm, according to the path that saves the most time, and cuts the samples that fully conform to the layout; The cutter head can rotate 360°, the blade is sharp and the cutting is precise; At the same time, there is an infrared sensor function, touch emergency stop, to avoid cut accidents; Once sampling is complete, just collect the sample.

Applicable test items and standards of SmartCut Textile Sample Cutting Machine

Test Items	Corresponding Standards
Abrasion & Pilling	GB/T4802、 ISO12945、 JIS L1076、ASTM D4970
Tearing Strength	GB/T3917 、 ISO 13937 、 JIS L1096 、ASTM D751
Water Proof	GB/T4745、ISO 4920、AATCC 22、ISO 9865、JIS L1092
Antistatic Test	GB/T12703 、 GB/T 22042、EN 1149、ISO 6330
Core Suction Height	GB/T21655、JISL1907、ISO6330
Dimensional Stability	GB/T 8629、ISO 6330、JIS L0217、AATCC 135、AS2001.5.4
Elastic Elongation	FZ/T01062、ASTMD3107、JIS L1096、EN 14704
Tensile Strength	GB/T3923、 ISO 13934 、 ASTM D5034、EN 29073-3
Fabric Weight	GB/T4669、ASTM D3776、ISO 3801、JIS K6772、EN 12127
Abrasion Resistance	GB/T21196.2、ISO 12947、ASTM D3884、AS 2001.2.28
Peel Strength	FZ/T80007.1、ISO 8096、JIS L1089、ASTM D2724
Burst Strength	GB/T7742.1、ISO13938-1、ASTM D3786
Seam slippage	GB/T13772.1 、 FZ/T20019、ISO13936 、 JIS L1096
anti-hooking	GB/T11047、BS8479、ASTMD3939
down-proof	GB/T12705 、 GB/T 14272、EN 12132、ISO 6330
Colorfastness to rubbing	GB/T3920、AATCC 8、ISO 105 X12、ASTM D2054、JIS L0849
Colorfastness to sunlight	GB/T8427、AATCC-16(3)、ISO 105-B02、ASTM D6544
Other color fastness items	GB/T、FZ/T、ISO、EN、JISL、AATCC、ASTM、CAN、AS
Flammability	GB/T5455、FZ/T01028、ISO 3795、GB 8410、ASTM D5132
other items	……

Product model and specification of SmartCut Sample Cutting Machine

Model	Working Area(cm)	Weight(kg)	Power(kW)	Warranty Period
CV517-6060	60*60	400	4.5	1 year
CV517-1410 CV517-1610	140*100/160*100	600	4.5	1 year
CV517-1516	150*160	650	4.5	1 year
CV517-1810 CV517-1812	180*100/180*120	700	4.5	1 year
CV517-2516	250*160	1000	9.5	1 year
CV517-3020	300*200	1200	9.5	1 year

Cutting accuracy: ±0.1 mm

Repeatability: ±0.01 mm

Maximum cutting thickness: 7mm

Fabric fixing method: vacuum adsorption to ensure flatness

Tabletop wear resistance: it is recommended to replace the tabletop once a year.

Standard order: smart sample cutting software, smart cutting machine, computer, projector, brush function.

Optional: Inkjet marking function of the software, vibrating cutter head can be added.

Power supply 220V/380V 50Hz-60Hz 20A-40A
