overview

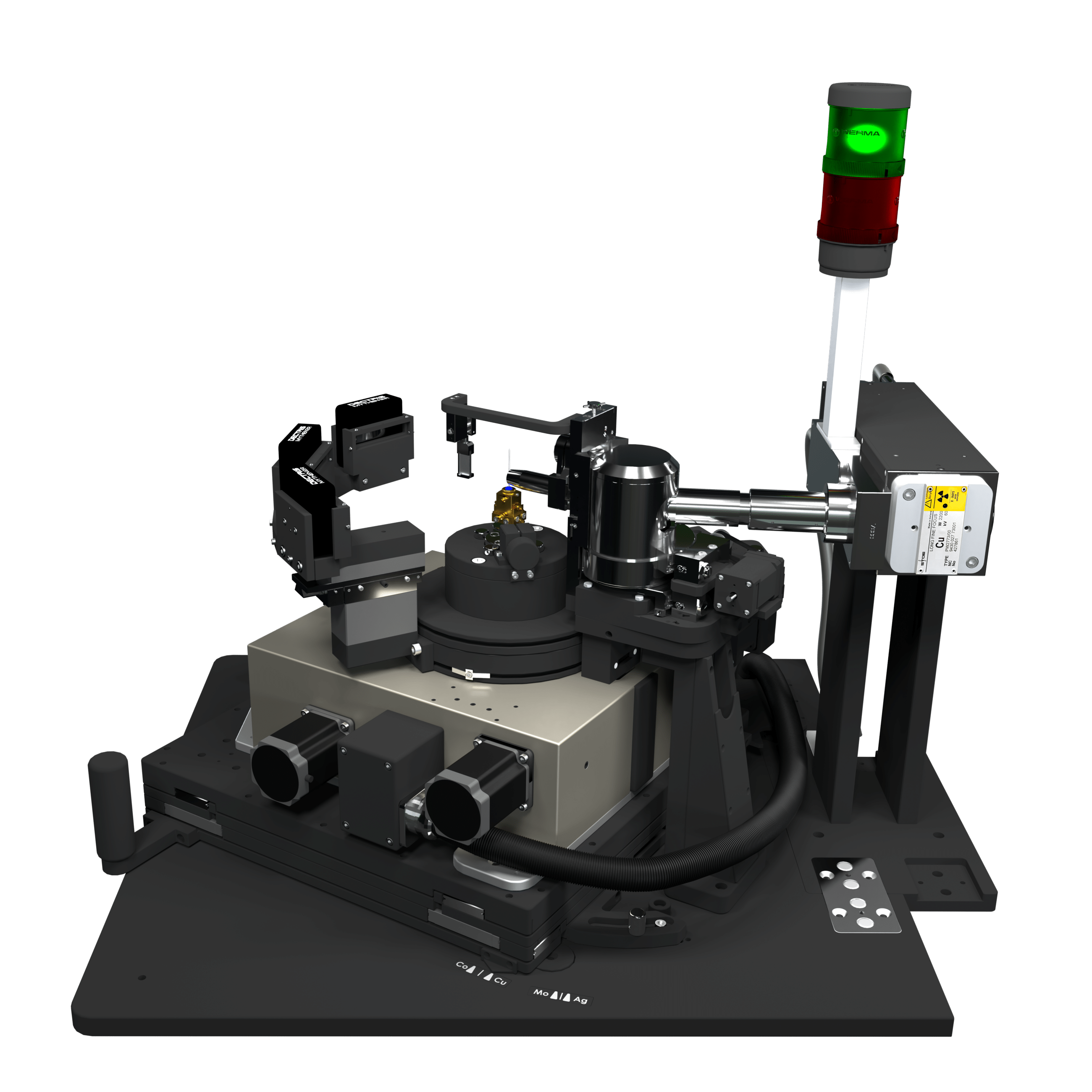

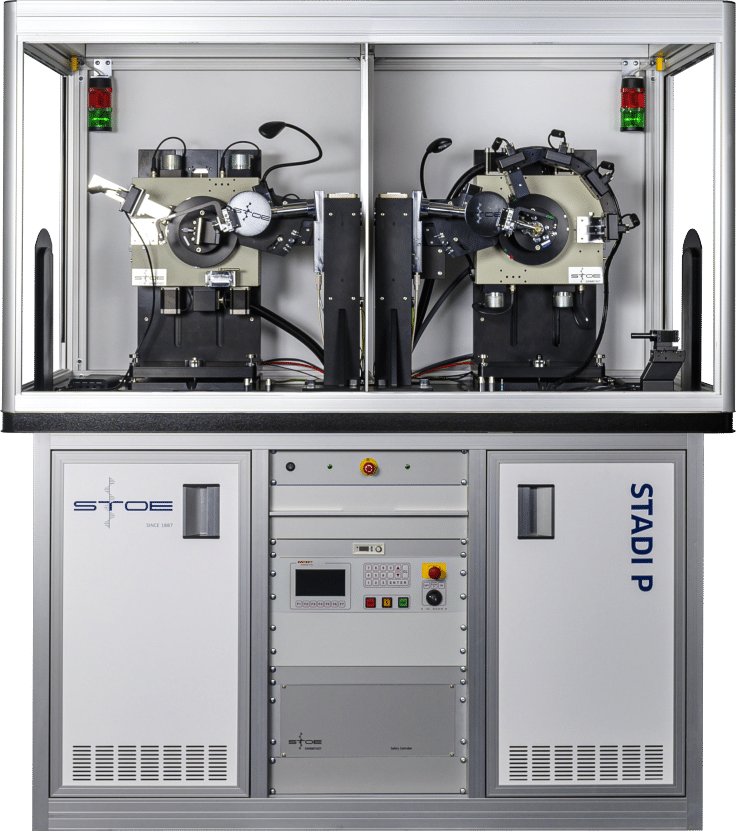

The well-known, high-precision STOE STADI P two circle goniometer is the basis of STOE’s powder diffraction building block system (read more about it here). Vertically or horizontally mounted, the STADI P can be built in Transmission/Debye-Scherrer or Bragg-Brentano geometry. Moreover, two STADI P goniometers, either in the same or different configurations, can be mounted in the same cabinet resulting in two completely independent instruments. However, the two goniometers can also share one source.
- Various single-photon-counting X-ray detectors
- Pure Kα1 radiation using Co, Cu, Mo and Ag sources

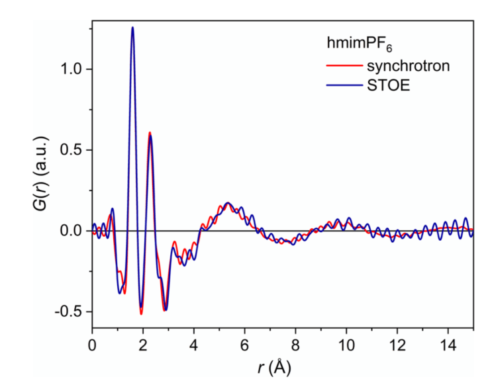

- The ultimate platform for laboratory PDF calculations using Ag Kα1 data
- Transmission/Debye-Scherrer or Bragg-Brentano mode
- Ideally suited for the analysis of air/moisture-sensitive and microsamples
- A range of high- and low-temperature attachments available
 100vw, 736px” data-lazy-src=”https://www.stoe.com/wp-content/uploads/STADIP_full_freigestellt.png”><noscript><img fetchpriority=)
specifications
| 2θ range | 0° up to 140° 2θ |
| Goniometer | 2 circles |
| Radius of measuring circle | 260 mm |
| Radius of focusing circle | 130 mm |
| X-ray sources | Sealed Tubes: Co, Cu, Mo, Ag |
| Optics | Primary monochromator |
| Software | WinXPOW package |
| Dimensions (Including system cabinet, max.) | 1800 x 880 x 2050 mm |
| Weight (complete system) | 780 – 940 kg |
| Detectors | Silicon strip detector MYTHEN2 R 1K/2K/3K/4K |
| Accessories | • High- and low-temperature attachments for reflection and capillary samples • Reaction chamber for capillary samples • Various sample stages • Various sample changers |
