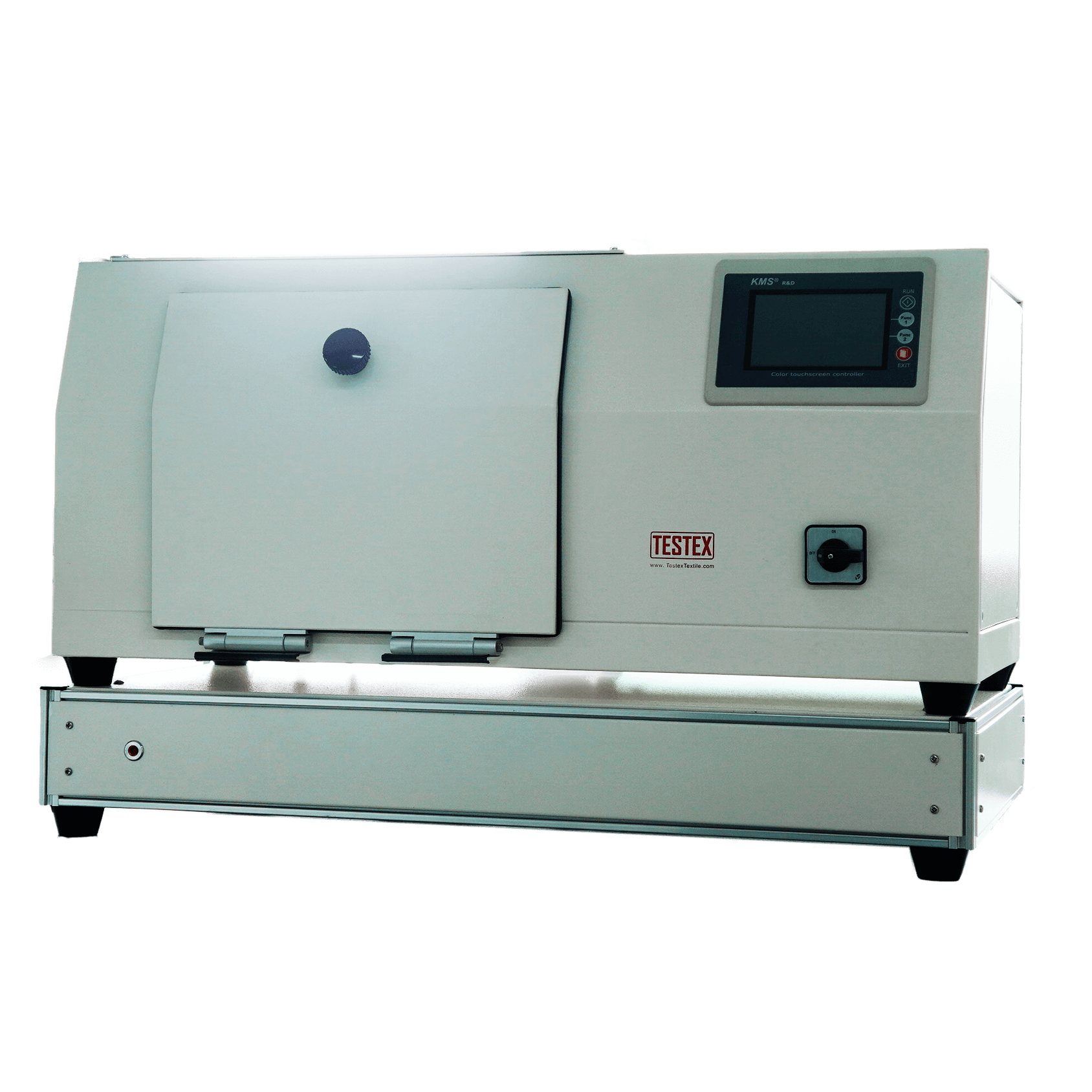

Tabletop Light Fastness Tester is a powerful Xenon instrument with an affordable price for conducting accelerated tests of light fastness and photostability test. TESTEX is an experienced Tabletop Light Fastness Tester manufacturer in the industry and currently sells its products to more than 60 countries and regions worldwide.
Description
Application
Tabletop Light Fastness Tester is a powerful xenon instrument with an affordable price for performing accelerated lightfastness and light stability tests. Besides, the tabletop light fastness tester is designed as a tabletop unit with a microprocessor controller for easy operation. Moreover, the instrument is mainly applied in textile testing, such as cotton, woven fabric, and knitted fabric.
Testing Principle
Colorfastness to light is the firmness degree to which the color of textiles is under the exposition of sunlight or simulated sunlight. The test of color fastness to light: arrange the sample with a set of blue wool standards samples (8 pieces) in a prescribed manner at first. Then cover a part of the specimen and the blue standard sample with an opaque covering in the prescribed proportion.
Expose the samples under specified conditions such as not being exposed to rain, etc. When the color difference between the exposed and unexposed parts of the sample is equal to a certain level of the discoloration gray card, or the color change of the specified blue standard sample is equivalent to a certain level of the discoloration gray card, stop the sun exposure. Finally, remove the cover, and place the sample and the blue standard sample in the dark for 4H. Then we can evaluate the colorfastness level of the textile with the specified light source.
Specifications
- Record the use time of the xenon lamp.
- Specimen table with 200 x 280 mm exposure area.
- Setting and displaying the cumulate light energy and exposure time.

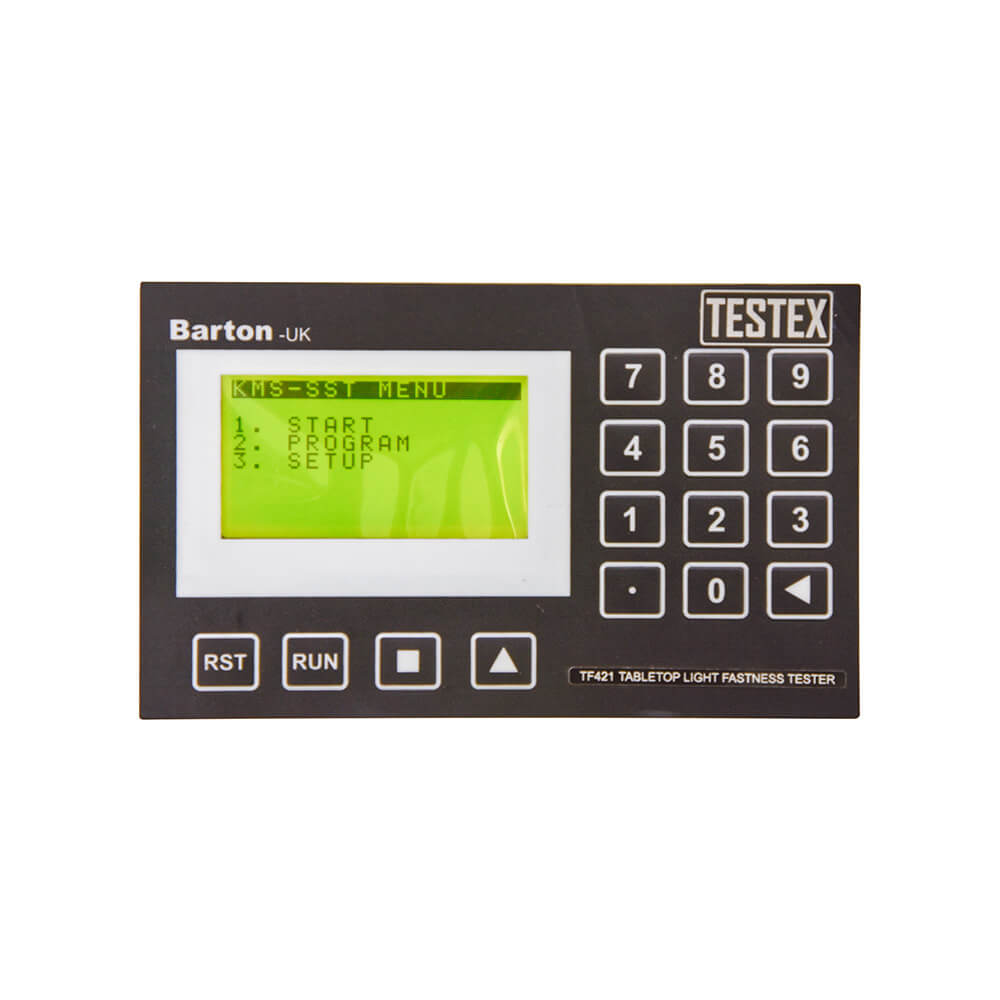

- Microprocessor control with large LCD displays data and irradiance wave-length curve.
- Air-cooled xenon lamp with 1.5 KW measure, irradiance (420 nm): 1.1 W/m²/nm.
- Measure and control the temperature relative humidity of the test chamber, and display it on a large LCD.
Accessories
| Standard Accessories | Optional Accessories |
| Specimen holder | AATCC blue wool specimen L2-L9 |
| Filters | AATCC color gray card |
| Xenon lamp | Xenon lamp |
| Water tank |
Weight
| 50 kg |
Power
| 220 V | 50 Hz | 4 KW |
Dimensions
| Length: 800 mm | Width: 500 mm | Height: 470 mm |
Standards
| ISO 105-B02: 2014 Methods 3 & 4 | GB/T 8427 Method 3 and 4 |
