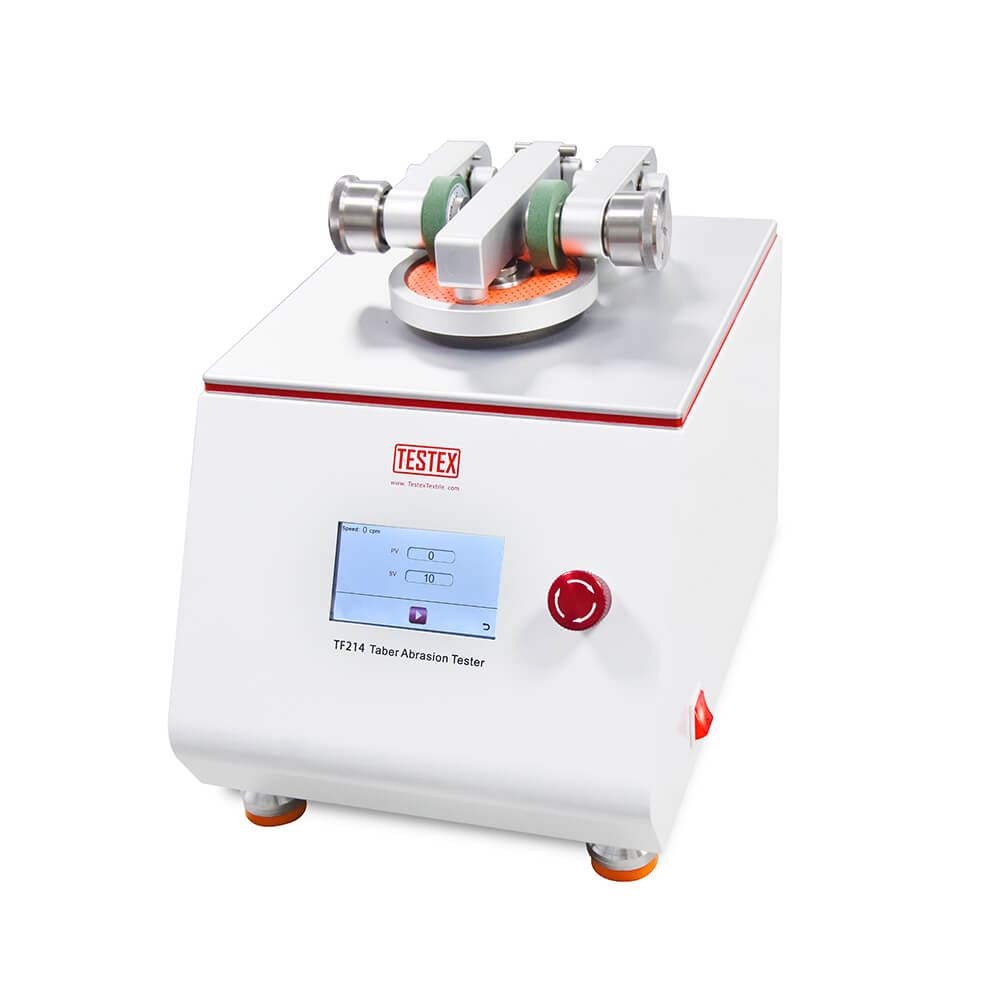

TabWear Abrasion Tester is often called a “TabWear machine”. It tests the wear resistance of fabrics, leather, and more. It complies with ASTM D3884/D3389/D4060, and ISO 5470. Also, TabWear Tester TF214 is easy to use. This means it costs little to train the tester to use it. We provide the TabeWear Tester for sale at a competitive price. Feel free to contact us for more information about the TabWear Tester. The TESTEX Taber abrasion tester is for sale at a summer hot promotion. Also, we are selling a series of other abrasion testers.
Description
Features of TaberWear Abrasion Tester TF214
Accurate test results
We carefully select grinding wheels and robust test arm components. Both go through strict quality control. This is to ensure that they are high-quality and stable. This is to ensure the accuracy of Taber abrasion tests.
High repeatability
We used the same set of samples and machines. We ran many tests. The results of the abrasion resistance test were the same.
High reproducibility
We tested the same set of samples. Or, we tested different machines of the same model. We did this many times. The test results are the same each time.
Longer service life
TESTEX TabWear is made of stainless steel. It resists corrosion and rust.
Easy to use

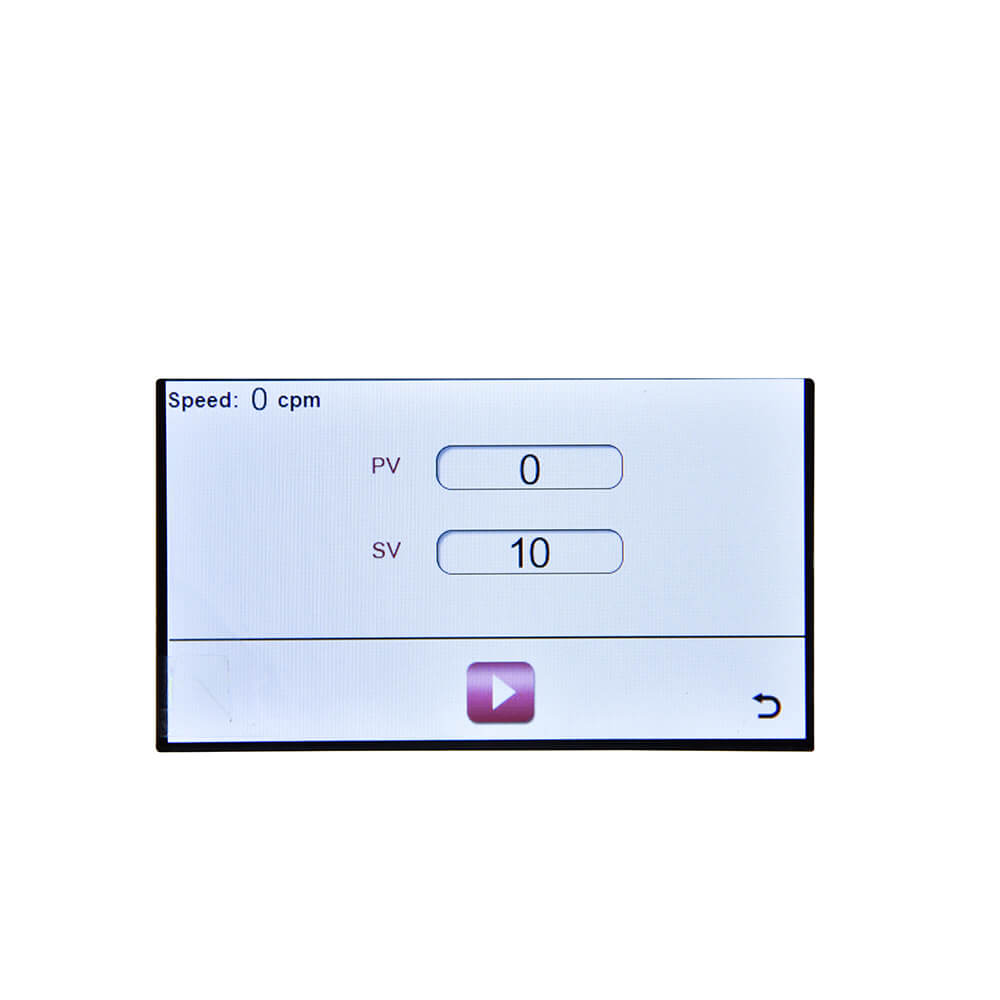

Loading and unloading grinding wheels is very simple and fast. Key parts are easy to replace. The abrasion test can be run by color touch screen. It is easy and efficient.
DC vacuum nozzle with adjustable height can accommodate different sample thicknesses.
Specifications of TaberWear Abrasion Tester TF214
| Image |  |
 |
| Taber Abrasion Tester | TF214A (single head) | TF214B (dual head) |
| Wear Round Centre Spacing | 52.4 mm | 52.4 mm |
| Gyration Speed | 60±1 or 72±1 rpm | 60±1 or 72±1 rpm |
| Counter | 0-999,999 times | 0-999,999 times |
| Weights | 15 Kg | 25 Kg |
| Dimensions | 290mm*380mm*240mm | 530mm*380mm*240mm |
| Structure | Single head | Double head |
| Power | 220/110 V 50/60 Hz | 220/110 V 50/60 Hz |
| Load Weights | 2pcs *250g, 2pcs *750g (so can combine the weight of 250g, 500g, 1000 g) | 2pcs *250g, 2pcs *750g (so can combine the weight of 250g, 500g, 1000 g) |
Optional order
- Grinding Wheel CS – 17 / CS – 10 or others
- Paster S – 36
- Sandpaper S – 11
Standards of TaberWear Abrasion Tester TF214
| ISO 5470-1 | ASTM D3884 | ASTM D3389 | |
| optional standards: | ASTM D4060 | ASTM G195 |
Application of TaberWear Abrasion Tester TF214
The TabWear Abrasion Tester is also called the TabWear Abrasion Machine. It is a type of abrasion testing machine. It tests how well materials resist wear. You can use it for fabrics, leather, rubber, and paper. It can also test travel cases, carpets, cardboard, and clothing. Besides, you can also test glass, tile, metal, paints, varnishes, etc.
What is the TaberWear Abrasion test? What is the principle of the TaberWear abrasion tester?
Taber abrasion test is a test to determine materials’ resistance to abrasion. Abrasion resistance is the ability of a material to withstand rubbing. It can also withstand scraping or erosion. It’s defined as its ability to withstand mechanical action. The methods can test metals, composites, ceramics, and thick coatings. These coatings include weld overlays and thermal spray. Taber created the first Taber Abrasion Testing Machine. It has become a top way to test how resistant materials are to wear. You can check Taber’s abrasions on many different materials. You can use the Taber Tester to check base metals, ceramics, polymers, and fabrics. Taber abrasion tests are often performed on coated materials.
An example is a buried pipe. We test the pipe’s coating. We do this to ensure it can withstand wear and tear from soil and other ground materials.

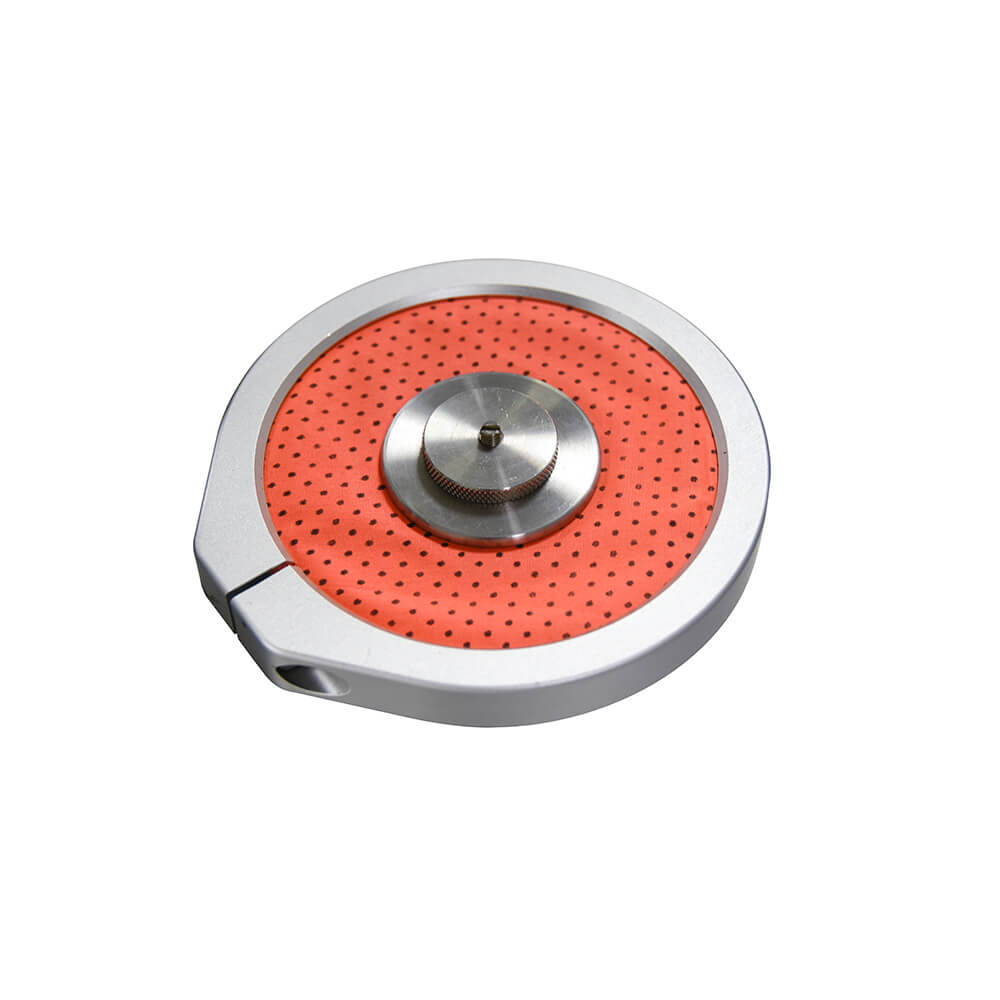

A rotating platform places the Taber abrasion test specimen. Two friction wheels sit above the specimen. They rotate against it under a certain load. One friction wheel faces outward. The other faces inward. They form a circular wear mark. After a set number of rubbing cycles, we evaluate the wear by checking the color loss visually, using a gray card). Or, we compare the weight of the specimen before and after the test. If you want to know more about the Taber abrasion test, you can contact us via the chat box in the right-hand corner.
The abrasion index is calculated using this formula. It’s abrasion loss weight divided by the number of test revolutions, times 1000.
Tips for getting more repeatability from this TabeWear Abrasion Tester.
-
Refurbishing the wheels before the test.
-
Adjust the height of the vacuum pick-up nozzles each time. Do this when you change the sandpaper.
-
Check the surface of the wheels after a long period of testing.
Test Report of Taber Abrasion Test
A test report of the abrasive resistance should contain the following information.
1 Complete detail of the abrasive used
2 The load put on each wheel during the test
3 Details of changes in properties of the tested sample
4 Details of any deviations from the procedure specified and other situations that occur suddenly and affect the accuracy of the result.
Maintenance and Precaution of Use of TabeWear Abrasion Tester TF214
1 Must place the Taber tester on flat ground.
2 The Taber tester is not allowed to be moved when it is used.
3 Clean the platform of the Taber tester to keep it clean after the experiment.
4 Ensure the Taber tester is under a good ventilation environment when working.
5 Select the appropriate power supply and voltage, which should not be excessive to prevent burning the Taber tester.
Welcome to TESTEX – a professional textile testing instrument supplier – TabWear Tester TF214 is on sale, contact us to get a detailed Taber abraser price quote.
