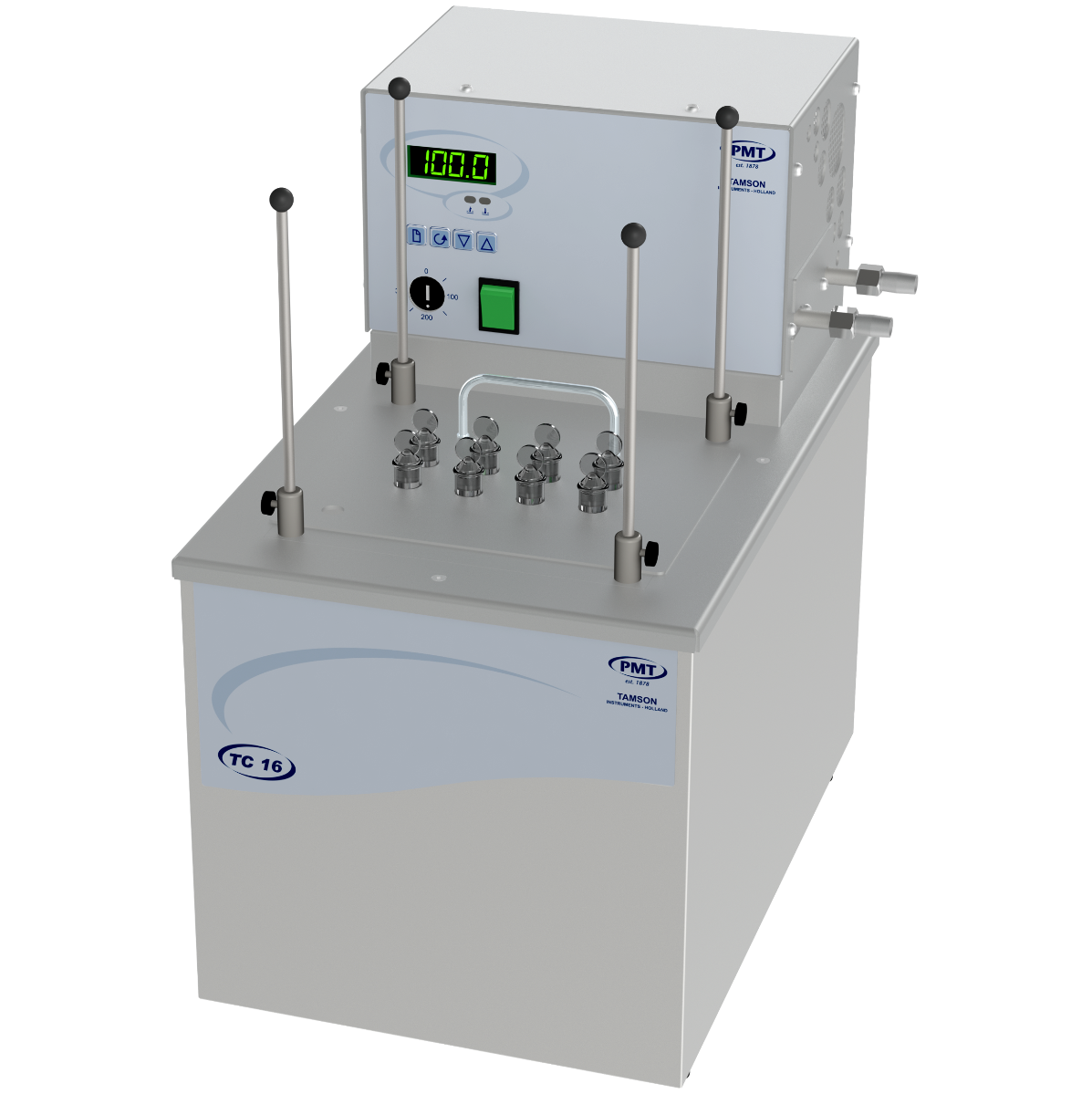

The Tamson TC16 is an excellent solution for heating the samples conform ASTM D565 and ASTM D612. Tamson can supply the TC16 with the prescribed glassware and eight positions for heating of the sample. Optionally, we can also deliver the colour comparator that is required in the test method. The temperature can be set from ambient +5°C to 250°C. The wetted parts in the TC16 are made from stainless steel. The TC16 is used for precise temperature control and offers high reliability for use under rough circumstances. The insulation of the bath and electronic design result in a stable working temperature of ± 0.02°C. The set point temperature can be set in steps of 0.1°C in the range of 0°C up to 250°C (32°F..482°F). The accuracy on the display is displayed in 0.1°C. However the controller has an internal accuracy of 0.01°C. This two decimal-readout also is available from the optional RS232 and the free Tamcom software. The bath is equipped with a cooling coil for counter-cooling. The bath conforms to CE regulation. It is further equipped with a mechanical resettable safety thermostat and a drain to empty the bath.

Main Features:

• Eight positions for sample heating
• Suitable for internal and external applications
• Stainless steel, robust bath
• Easy to read display
• Very quiet
• Easy switching between internal and external circulation
• Insulated bath provides extreme temperature stability
• Integrated cooling coil for counter-cooling
• Bath drain

The TC16 is available in the following voltages/frequencies:

• TC16 230V/50-60Hz (P/N: 00T0671)
• TC16 115V/60Hz (P/N: 00T0861)
