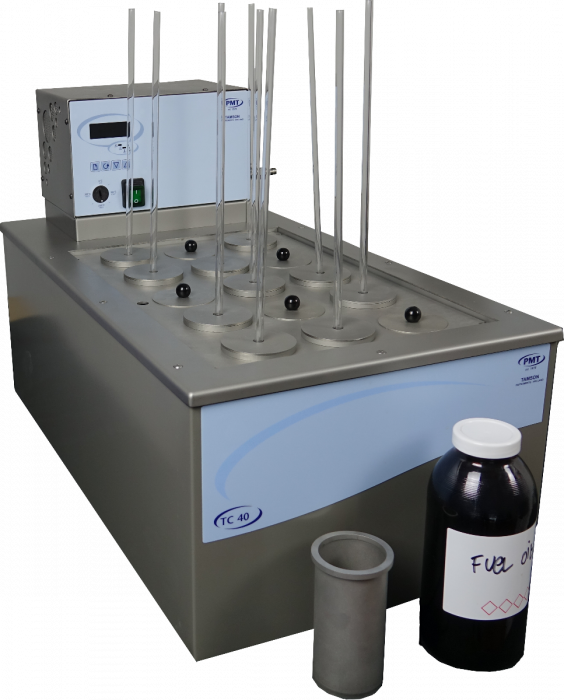

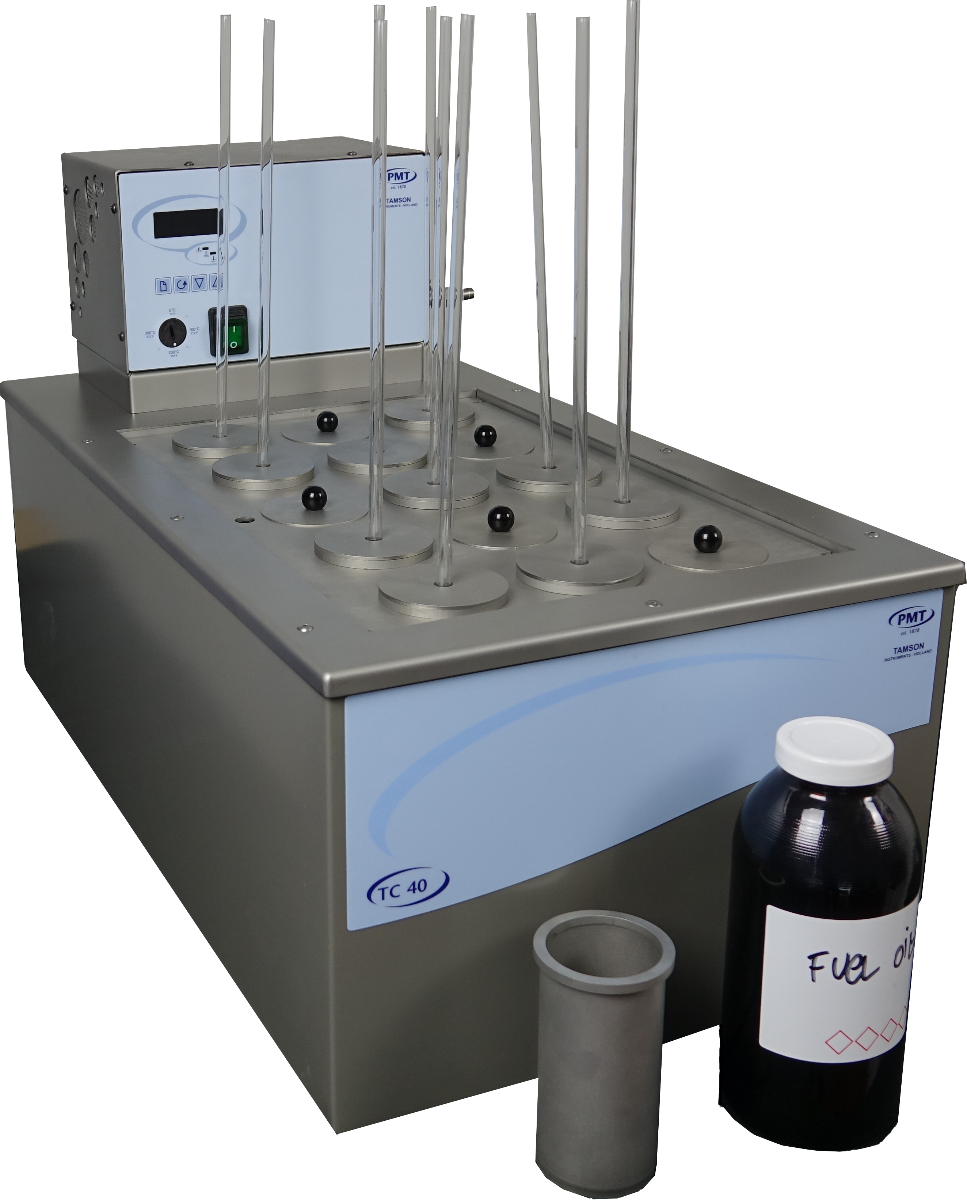

The TC40 ASTM D4870 ageing bath offers six positions for ageing of the sample for the total sediment test. The bath can be delivered complete will all accessories to age the sample conform the test method. The TC40 is used for precise temperature control and offers high reliability for use under rough circumstances. The insulation of the bath and electronic design result in a stable working temperature of ± 0.02°C. The set point temperature can be set in steps of 0.1°C in the range of 0°C up to 250°C (32°F..482°F). The accuracy on the display is displayed in 0.1°C. However the controller has an internal accuracy of 0.01°C. This two decimal-readout also is available from the optional RS232 and the free Tamcom software. The bath is equipped with a cooling coil for counter-cooling. The bath conforms to CE regulation. It is further equipped with a mechanical resettable safety thermostat and a drain to empty the bath.

Main Features:

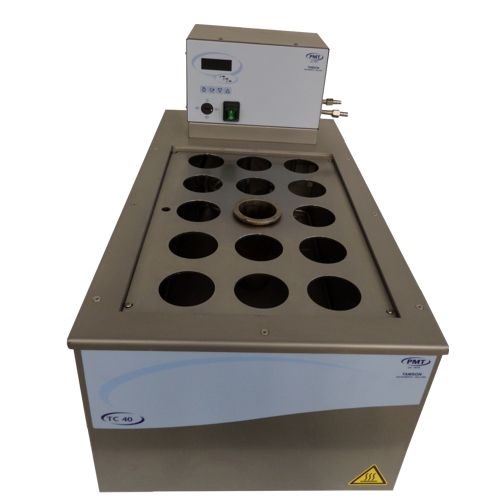

• Position for 15 airwells for ageing of the sample
• All accessories can be delivered by Tamson
• Suitable for internal and external applications
• Stainless steel, robust bath
• Easy to read display
• Very quiet
• Easy switching between internal and external circulation
• Insulated bath provides extreme temperature stability
• Integrated cooling coil for counter-cooling
• Bath drain

The TC40 is available in the following voltages/frequencies:

• TC40 230V/50-60Hz (P/N: 00T0681)
• TC40 115V/60Hz (P/N: 00T0851)
