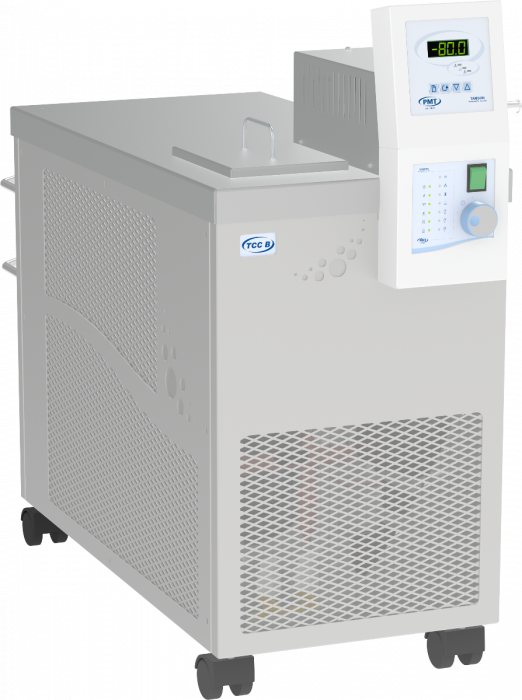

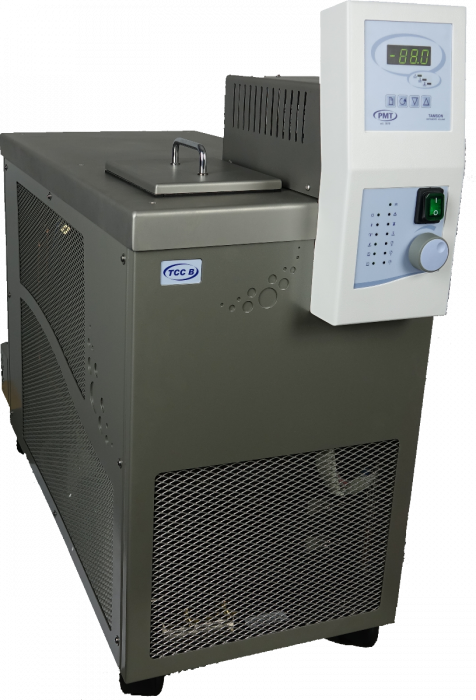

The TCC-B is a single adjustable circulator bath with position for four jackets to test the cloud and pour point manually conform ASTM D97 and ASTM D2500. The TCC-B is a low temperature circulator that can reach temperatures down to -85°C. At this low temperature the heat removal capacity is around 250 Watt. The bath can be used to circulate to an external application. The drain located at the back provides easy removal of the bath fluid. The bath has a float to detect a low fluid level. The used cooling system is ozone friendly, so it doesn’t contain any CFK/HCFK gas. The bath conforms to CE regulation. The TCC-B has a very precise temperature control. The set point can be set in steps of 0.1°C. A pressure pump provides circulation in the bath or via an external circuit. The pressure of the pump is 1000 mBar at 16 litres per minute. The bath can be delivered with all necessary accessories for cloud and pour point tests.

Main Features:

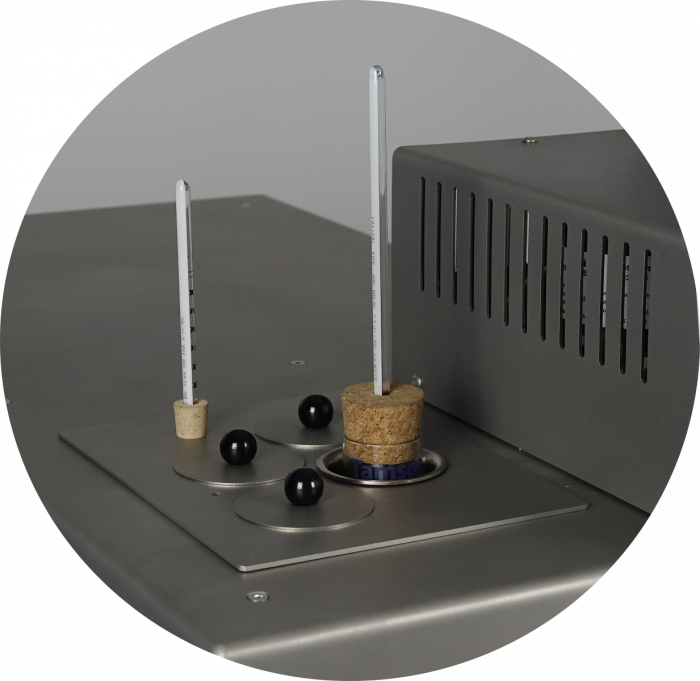

• Four positions for cloud and pour point tests
• Wheels for easy transport
• Temperature range down to -85°C
• Level detection
• Stainless steel, robust bath
• Low energy consumption
• Easy to read display
• Very quiet
• High heat removal capacity

The TCC-B is available in the following voltages/frequencies:

• TCC-B 230V/50Hz (P/N: 00T0310)
• TCC-B 230V/60Hz (P/N: 00T0311)
