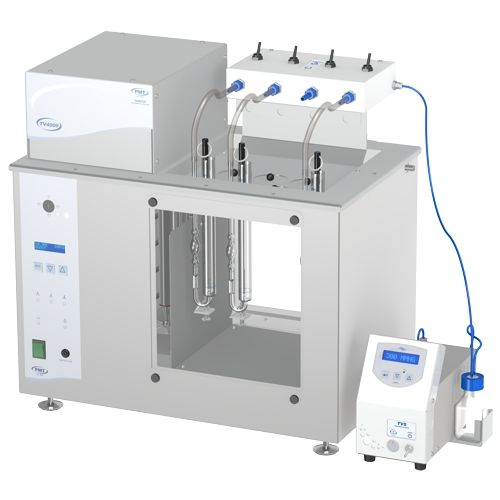

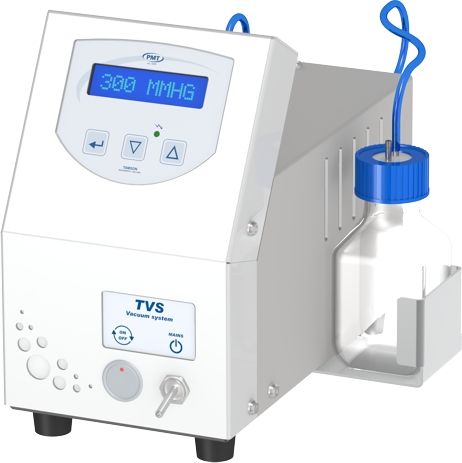

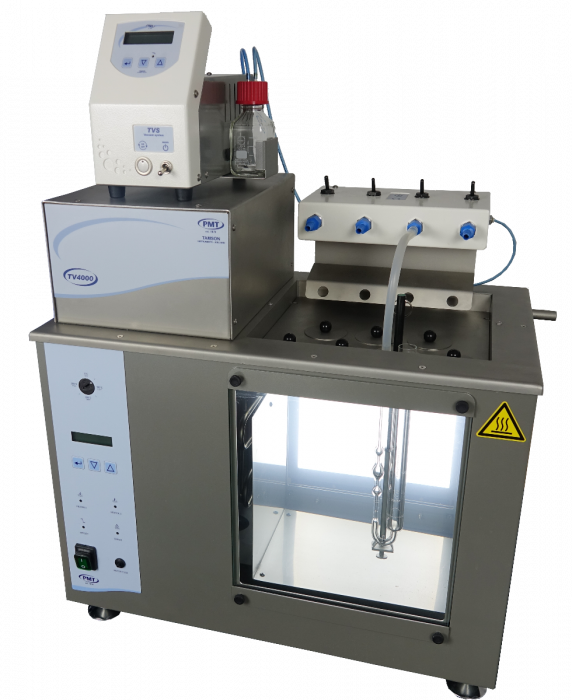

The Tamson ASTM D2171 apparatus is an excellent solution to test the viscosity of bitumen by vacuum capillary viscometer. The TV4000 can be used together with the Tamson Vacuum System (TVS) and Tamson Vacuum Manifold (TVM) to do viscosity determinations at +60°C according to ASTM D2171, IP 222, EN/ISO 12596 and AASHTOT 202. The apparatus offers four positions for Cannon Manning Vacuum Viscometers (CMVV), Asphalt Institute Vacuum Viscometers (AIVV) and Modified Koppers Vacuum Viscometers (MKVV). The TV4000 is very robust and designed to operate maintenance free.
The TV4000 is available in the following voltages/frequencies:
- TV4000 230V/50-60Hz (P/N: 00T0772)
- TV4000 115V/60Hz (P/N: 00T0774)
| SKU | 00T0772-D2171 |
|---|---|
| Bath Accuracy | 0.01°C |
| Bath Volume | 40 L |
| Height | 590 mm |
| Width | 590 mm |
| Length | 400 mm |
| Bath Opening | 260 * 240 mm |
| Bath Depth | 300 mm |
| Minimum Temperature | Ambient |
| Maximum Temperature | +230°C |
| Manual | click here |
| Specification | click here |
| Powerpoint | click here |
