Description

Application of UV Penetration & Protection Test System TF131

UV Penetration & Protection Tester TF131 can directly measure the textile UV protection coefficient UPF.

Measurable parameters: ultraviolet A band transmittance ratio: T (UVA), ultraviolet B band transmittance ratio: T (UVB), UV protection coefficient: UPF

UV Penetration & Protection Test System TF131 Measures the fabric samples in a double-beam spectrophotometer with an integrated sphere. Scan the sample in the UVA and UVB regions of the spectrum, and the detector inside the integrating sphere will effectively collect the transmitted radiation. The software calculates UV penetration factors and sun protection factors from the scan data. It runs on a PC under Microsoft Windows and controls the spectrophotometer, automates the measurement process, and generates a printed report. PC and printer is optional order.

Features of UV Penetration & Protection Test System TF131

Built-in integrating sphere spectrophotometer, wavelength automatic scanning, (can measure all UV bands) wide test range, high test accuracy.

UV photoelectric sensors can measure fluorescent specimens.

This fabric UV protection tester is applicable to a wide range of international standards.

Specification of UV Penetration & Protection Test System TF131

•Measuring range:

•Through rate: 0-100% ± 0.01% UPF: 0-50+

•Wavelength range: 280 ~ 400nm ± 0.5 nm

•Wavelength repeatability: 0.25 nm

•Data interval: 2nm, 5nm (adjustable)

•Slit width:

•Optic system: 0 / d

•Light diameter of sample: 10mm

Weight

25 kg

Power/Air Source

220/110 V

50/60 Hz

100 W

Dimension

Length: 290 mm

Width: 540 mm

Height: 380 mm

Standards

AATCC 183

GB/T 18830

AS/NZS 4399

Test Procedure

Principle: Radiate the specimen with monochromatic UV rays or multicolored UV rays, collect the total spectral transmission rays, determine the total spectral transmission ratio and calculate the UV protection factor UPF value of the specimen.

1 Select a suitable specimen according to the standard and conditioning as required.

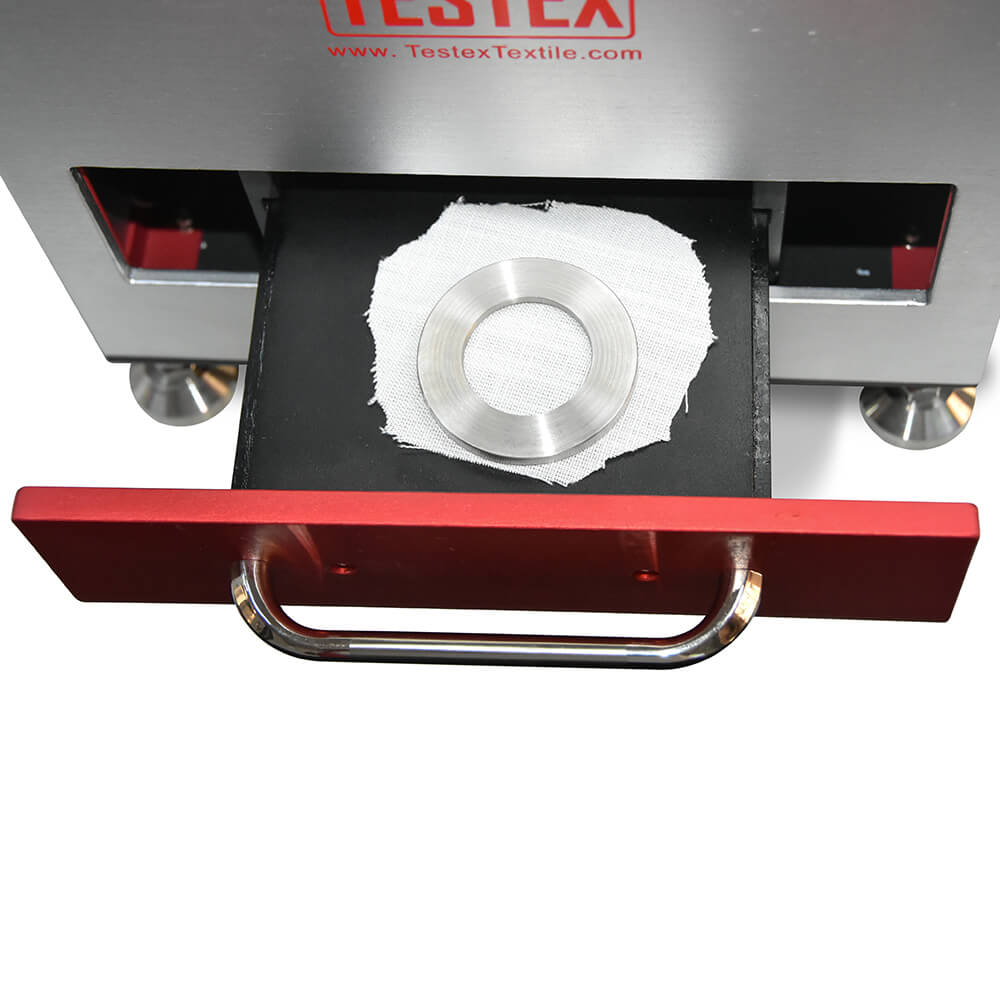

2 Place the specimen in front of the entrance to the integrating sphere, with the fabric side facing away from the skin towards the UV light source.
3 For instruments where the monochrome is placed in front of the specimen, apply a UV transmission filter and check its validity.
4 Record the transmission ratio between 290 ~ 400 nm, at least once every 5 nm.
5 Calculate UVA, UVB, and UPF according to the formulae given in the standard.

More information:

Clothing is an important barrier against ultraviolet radiation, however, the UV protection, or coverage rate of ordinary clothing is generally at 50%, which does not meet the requirements of human safety protection, so the development of specialized anti-UV textile products, followed by its detection, has become a concern for the industry. So, Fabric UV protection-related testing will have a huge development space in the future.
