Wrap Reel, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. Yarn Length Measuring Device complies with ISO 2060, ASTM D1907/2260, BS 2010, etc. Wrap reel yarn testing will be more accurate if you use our Wrap Reel.
Description
Wrap Reel Application

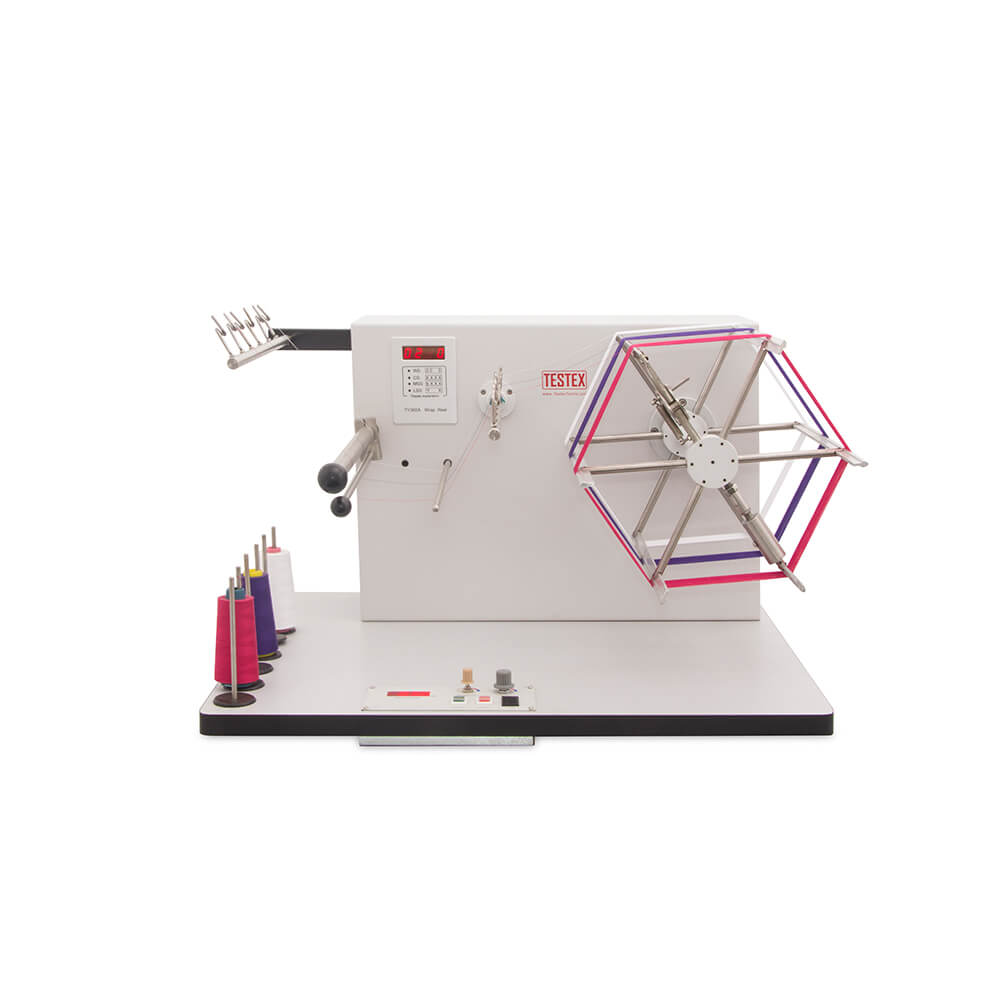

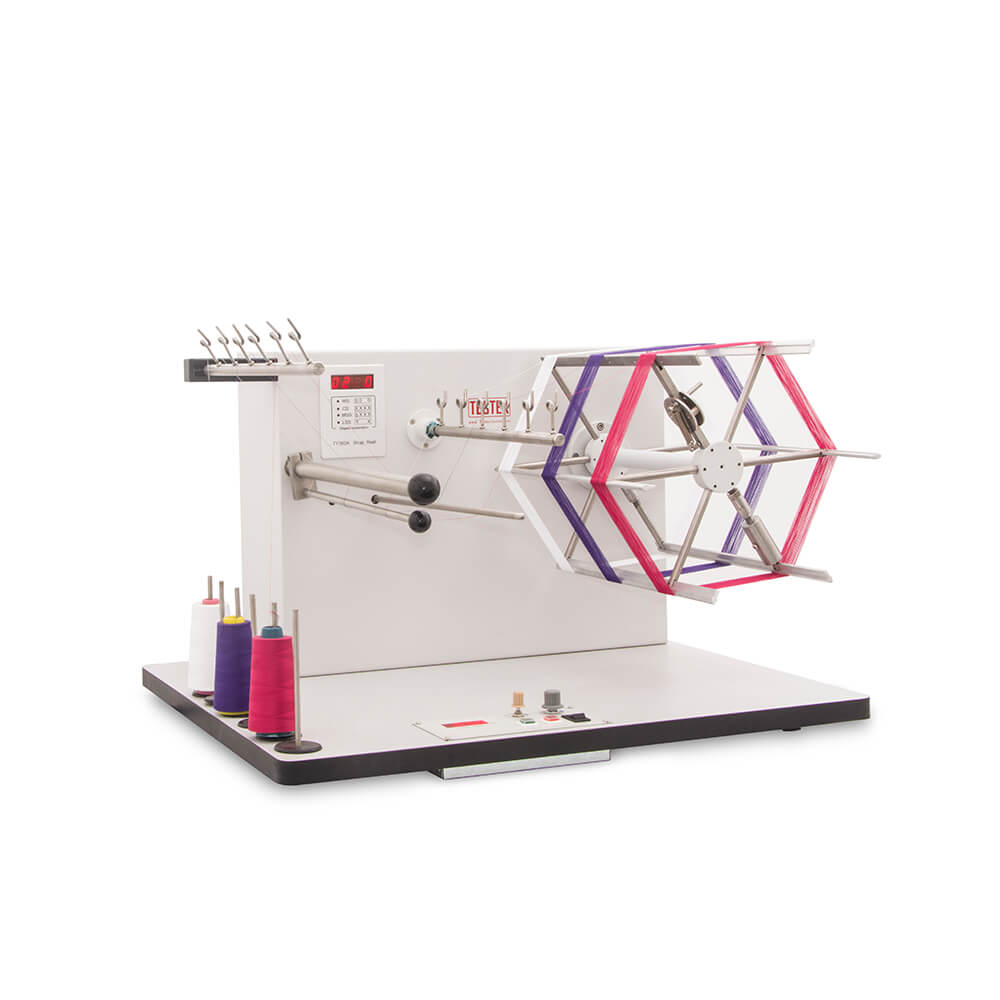

Wrap Reel Machine, to measure skeins of yarn of a pre-determined length and number of turns for count and strength testing. 1 Metre, 36″ or 54″ circumference collapsible swift (specify). Wrap reel Complete with yarn package stand and pre-tension device, fitted with a pre-determined counter.
The wrap reel can be used to assess the thread density of yarns, fibre filaments, etc. It can also be used to do specimen preparation for yarn strength and is widely used in central laboratories of textile enterprises, testing institutes, quality control, and law enforcement units and research institutes.
The wrap reel gives the length of one loop for every loop of yarn wound, therefore the yarn tension affects the length of the winding, the more loops the greater the difference in accumulated length. The TESTEX wrap reel starts and stops smoothly without additional tension shocks, which effectively avoids the phenomenon of rushing laps. In addition, it has low operating noise, accurate lap counting, and good reliability with a low failure rate.
Specifications
- Circumference of winch
TY360A 1000 ±1 mm
TY360B 54 ± 1/16 inch
- Number of wraps 1 ~ 9,999Ÿadjustable

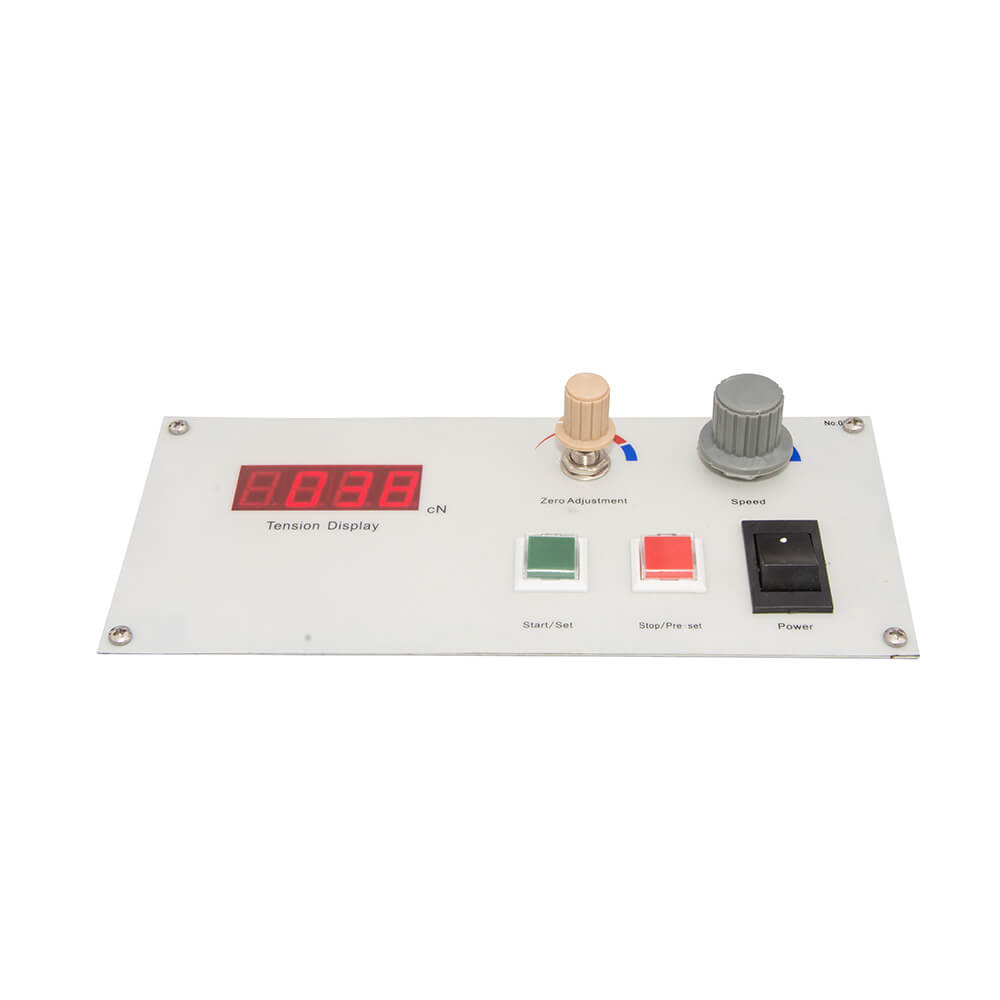

- Pre-tension adjustable
- Traveling reciprocating distance 35 mm
- Spacing of spindles 60 mm
- Reel speed 30 ~ 280 r/min (adjustable)
Weight
| 45 kg |
Power
| 220/110 V | 50/60 Hz |
Dimensions
| Length: | 900 mm | Width: | 610 mm | Height | 610 mm |
Standards
| ISO 2060 | ASTM D1907 Step 1 | GB/T 6838 | GB/T 14343 |
| GB/T 4743 |
indles 60 mm
- Reel speed 20 ~ 280r/min (variable)
