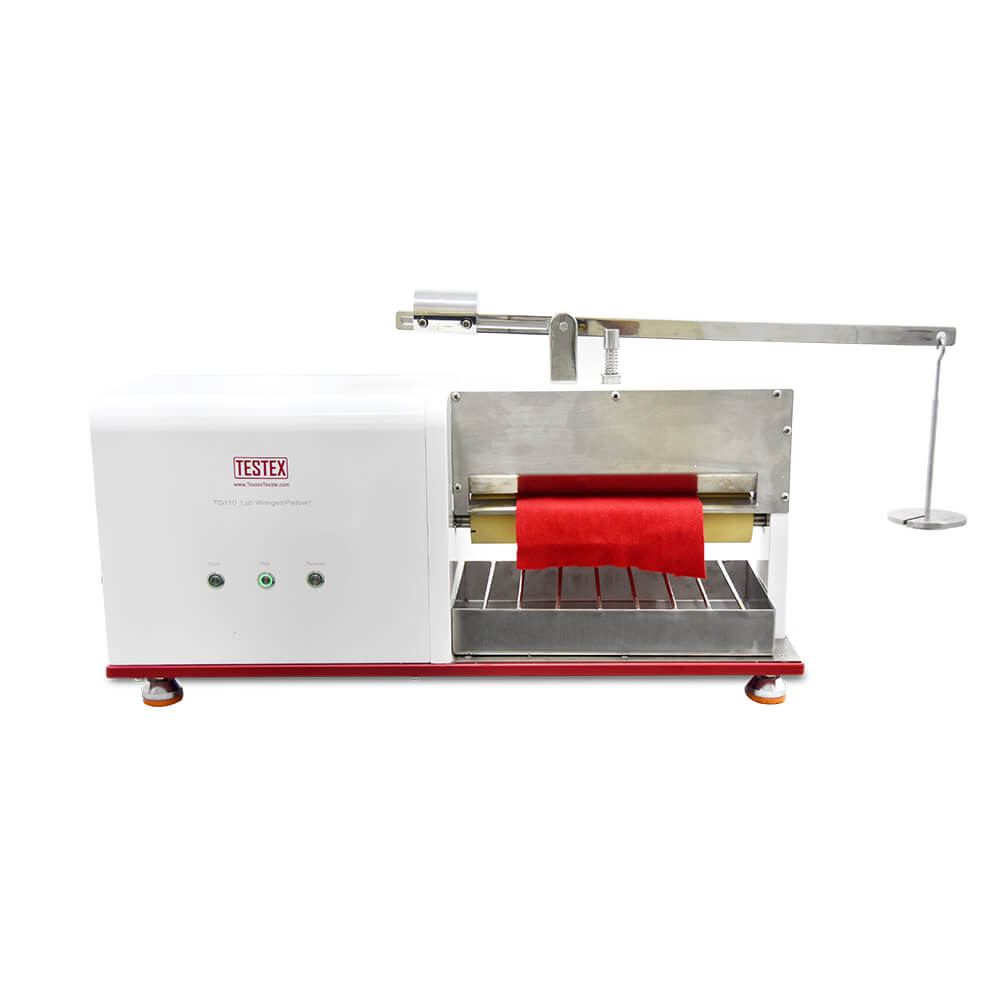

Wringer (Lab Padder), a table type of padding mangle machine for dyeing, is to evenly squeeze or extract excess liquid from fabric specimens for the next procedure of the test. This textile padder machine is used for many kinds of textile tests to precisely ensures the rest liquid of specimens. As a leading textile machinery manufacturer, TESTEX offers laboratory padders with high quality and competitive prices.
Description
Application
Laboratory Padder / Wringer, to evenly squeeze or extract excess liquid from fabric specimens for the next procedure of the test. This Laboratory padder is used for many kinds of textile tests, such as yarn dyeing, fabric dyeing, and elastic fabric, in order to precisely ensure the rest liquid of specimens.
This textile padder machine can conduct tests on the table, while another type of textile padder TD122 can be placed on the floor.
Specifications
| Working width | 300 mm(12 inches) |
| Rollers Dia | Dia. 54 mm, made of neoprene |
| Working speed | 25mm/s（9rpm) |
| Dead weight loading | up to 4.76kg |
| Equipped with liquor tank |
Included Accessories
Loading Weights 0.5Lb x1Pc, 1Lb x2Pcs, 2Lb x4Pcs
Weight
| 40kg |
Power
| 220/110 V | 50/60 Hz | 3A |
Dimensions
| Length: 960 mm | Width: 240 mm | Height: 370 mm |
Test principle

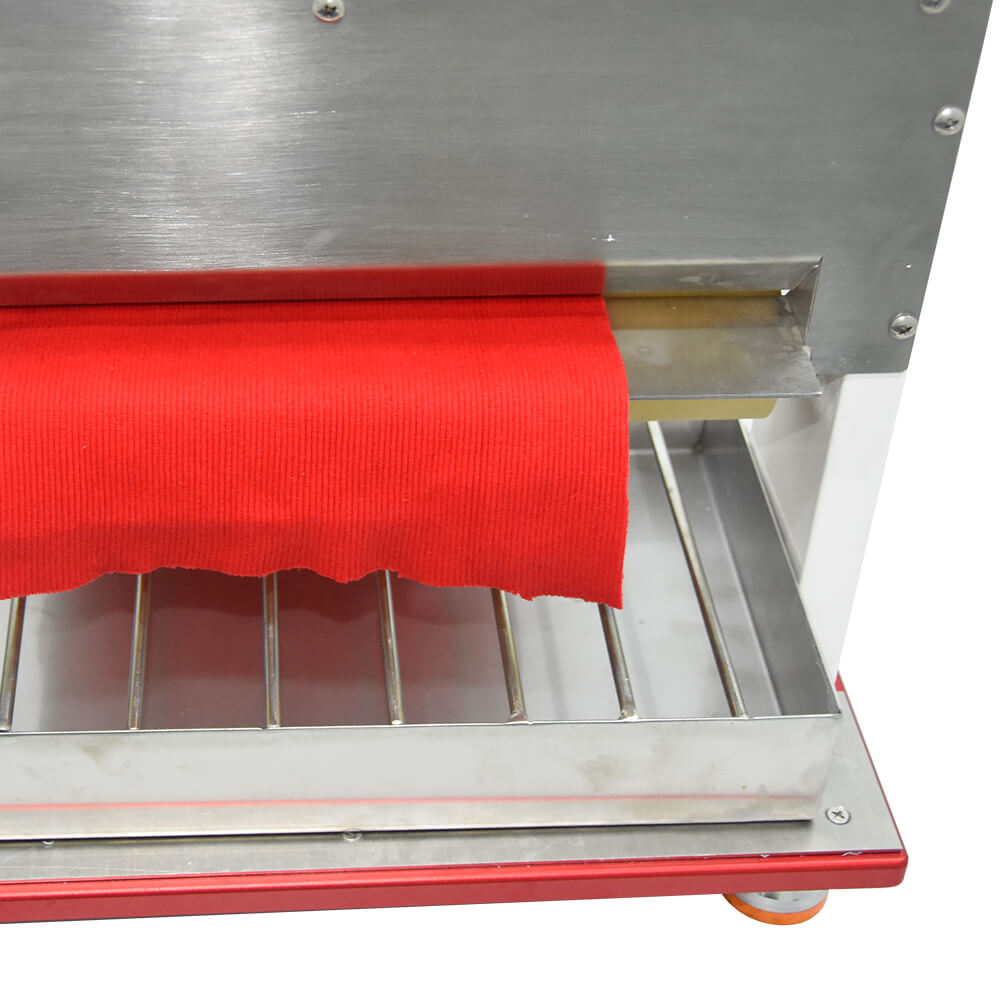

Applied load on drum, started the machine to make the drum rotate, placed fabric end in the middle of the two drums, drum drives fabric to roll, while squeezing out excess water.
Features
Precise testing results
driven by a motor, the drum runs at a constant speed and can evenly squeeze or extract excess liquid.
Meet different test requirements
Flexible pressure adjustment by increasing or decreasing the load weight.
Long service life and well design
Made of stainless steel and also equipped with a removable water tank for durable operation.
Why choose TESTEX Wringer (Lab Padder) TD110
Strictly meet standards:
All data for the Wringer (Lab Padder) meet the standard parameters, for example, GB/T 8629 and ISO 6330.
Consistency with international third-party laboratories:
The test data are comparable to the test results obtained by well-known international third-party laboratories.
High reproducibility:
Whether is the same set of samples, or different machines of the same model, after multiple tests, the results are consistent.
Longer service life:
TESTEX makes prototypes and then subjects them to rigorous reliability testing in a variety of environments to ensure achieve the expected service life.
User-friendly transparent warranty policy:
Textile testing machines, 14 months free warranty (12 months normal warranty time + 2 months shipping time). Besides, all spare parts, have 3 months free warranty.
We provide full life-cycle support for Wringer (Lab Padder) TD110. So feel free to contact our service team with any questions you may have.
Welcome to TESTEX – a professional textile testing instrument supplier – Wringer (Lab Padder) TD110 is on sale, contact us to get a detailed price quote.
