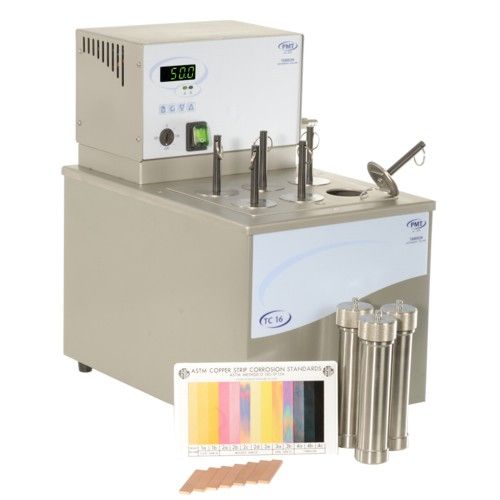

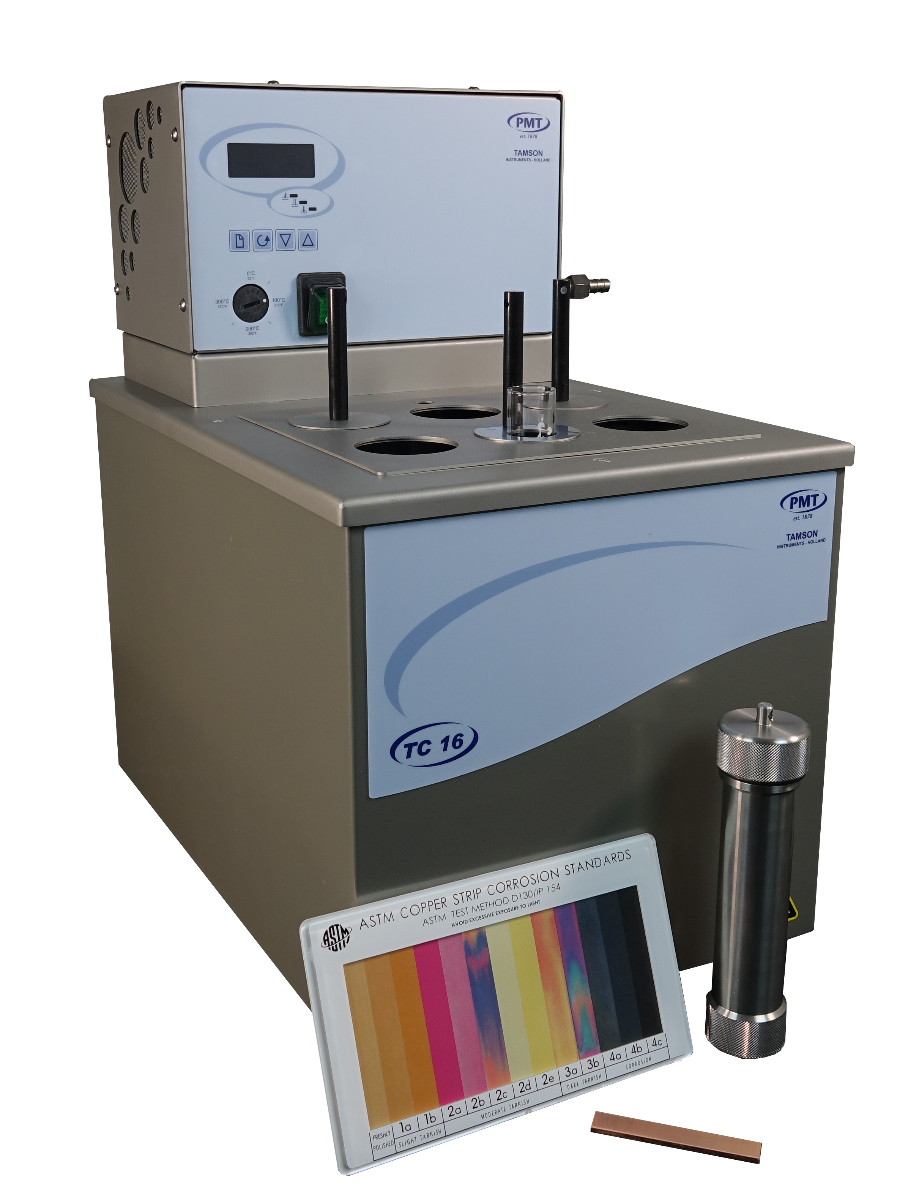

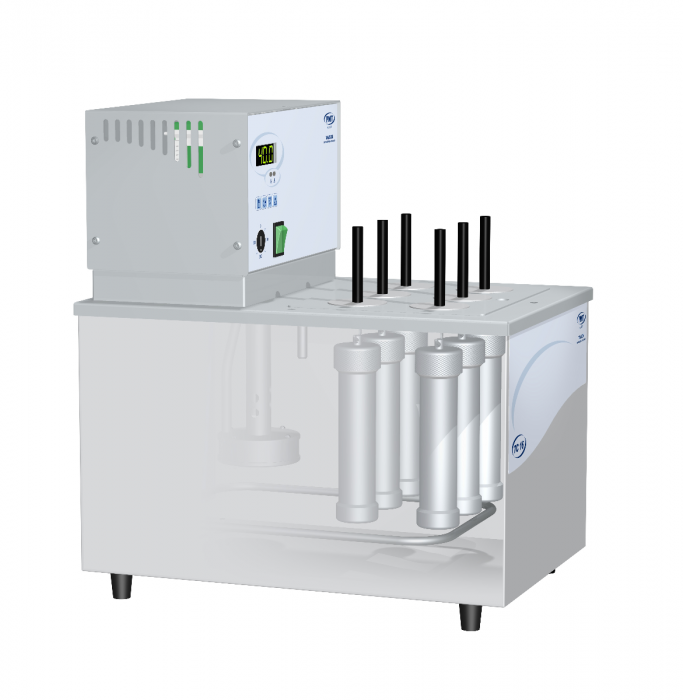

The test method covers the detection of the corrosiveness to copper of aviation gasoline, aviation turbine fuel, automotive gasoline, natural gasoline or other hydrocarbons having a Reid Vapour Pressure no greater than 18 psi. The cover of the bath has six openings, each with a lid and hook for suspending a copper corrosion test vessel (P/N 14T0100). Or the openings can accommodate test tubes in holders (P/N 14T0102). The temperature range is from ambient +5°C to 250°C. Optional is a cover with nine holes to test nine samples (P/N 03T2311). The insulation of the bath and electronic design result in a very stable working temperature of ± 0.02° The set point can be set in steps of 0.1° in the range of 0°C up to 250°C (-148..482°F). The accuracy on the display is displayed in 0.1°C. However the controller has an internal accuracy of 0.01°C. Standard available in °C, on request in °F. When not used for copper corrosion tests, the pump can be used to circulate the bath content to an external application. The bath conforms to CE regulation. It is further equipped with a mechanical resettable safety thermostat. Optional is a low liquid floater (P/N 07T0080). We also offer a TC40 bath with a cover for 18 positions (P/N 03T2313).

The Copper corrosion bath is an excellent solution when performing tests according to ASTM D130, EN/ISO 2160, IP 154, DIN 51811, ASTM D4048, IP 112 or ASTM D7095.

The Copper Corrosion bath is available in the following voltages/frequencies:

• Copper corrosion bath 230V/50-60Hz (P/N: 31T0671)
• Copper corrosion bath 115V/60Hz (P/N: 31T0861)
