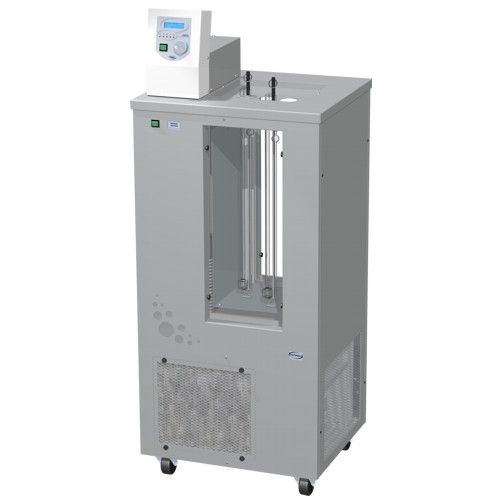

The TV7000LT is a unique visibility bath with wide dimensions. Working temperature ranges from minus 40°C up to plus 100°C. An integrated cooling system is able to lower the bath temperature down to minus 40°C within approximately four hours. The cooling power can be controlled over four stages so that the heat removal capacity is trimmed to the desired set point temperature, saving up to 50% of energy.
Due to its wide temperature range and wide dimentions the bath can be used for multiple purposes varying from low temperature viscosity measurement to calibration of sensors or thermometers. The large windows show the bath contents clearly. The windows are heated preventing build-up of condensate. The bath can be emptied via a drain. If bath fluid expands at higher set point temperatures overflow of bath is protected via a drain. A LED fluid level indicator alarms when fluid level is too low.
The bath temperature can be set from -40°C to a maximum of +100°C in steps of 0.01°C. The bath conforms to CE regulation. Further it is equipped with multiple safety features in order to guarantee safe around the clock operation. A mechanical safety thermostat protects the bath against high temperatures and will automatically reset itself after switching the bath off and on again.

Main features:

• Integrated cooling
• Ultra-high temperature stability
• All wetted parts made from stainless steel
• Large bath volume
• Bath drain and overflow outlet
• Easy to read display
• Very quiet
• Window heating to prevent condensation
• Able to reach -40°C without the use of an external cooling circulator

The TV7000LT is available in the following voltages/frequencies:

• TV7000LT 230V/50Hz (P/N: 00T0450)
• 230V/60Hz and 115V/60Hz versions on request
